ConViT：引入归纳偏置的ViT

本文复现了ConViT模型，其通过GPSA模块将CNN的归纳偏置引入ViT。代码用Paddle实现，包含网络结构搭建、模型定义等。在Cifar10数据集验证，因结合卷积优点，少样本下性能优于DeiT。还提供预训练权重，ImageNet验证集上不同架构有对应精度。

In this paper, we take a new step towards bridging the gap between CNNs and Transformers, by presenting a new method to “softly" introduce a convolutional inductive bias into the ViT

paper：https://arxiv.org/abs/2103.10697

code：https://github.com/facebookresearch/convit

前言

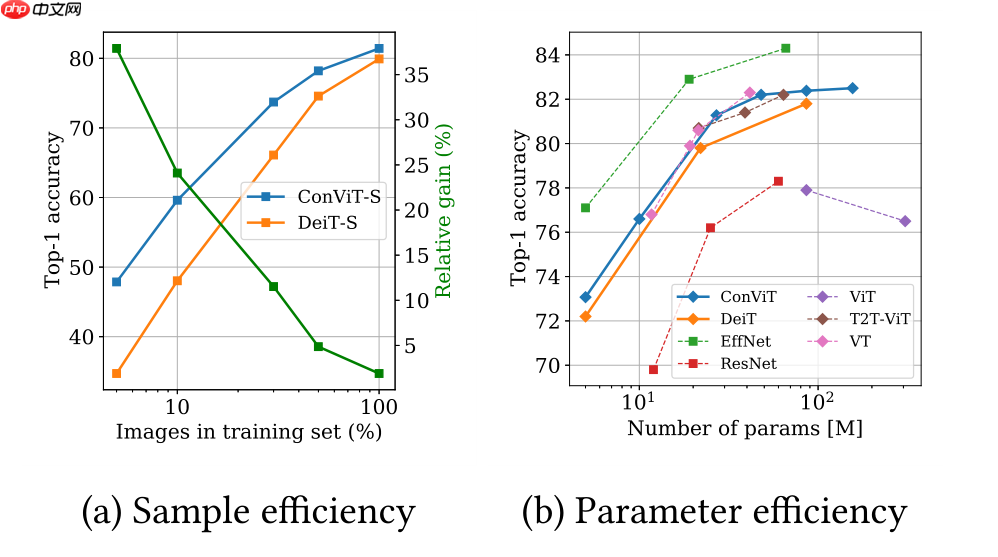

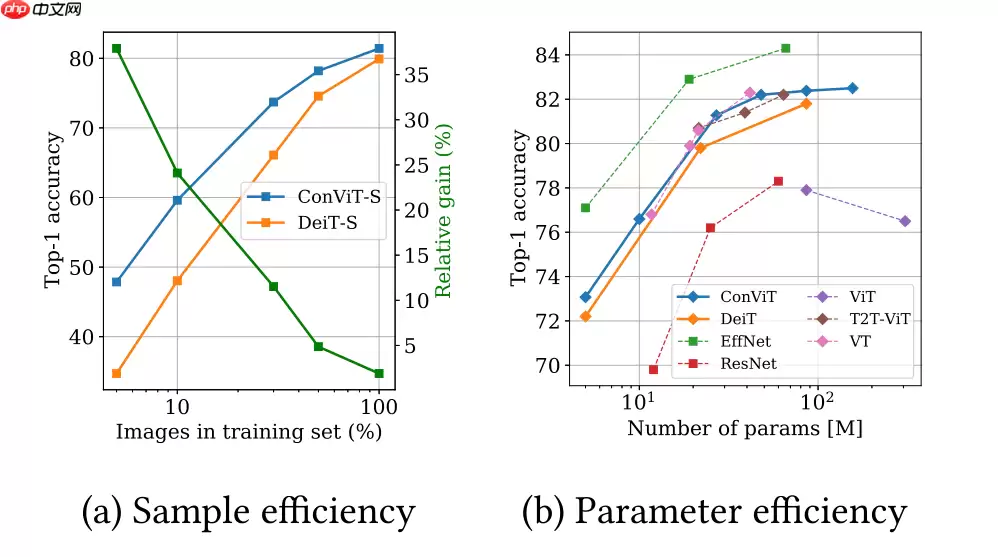

Hi guy，我们又见面了，这次来复现ConViT，最新性能如下

卷积神经网络具有归纳偏置，使得训练可以节约样本，但是缺点是模型天花板低，当数据集小时候，CNN展现比ViT更好的性能，当数据集充足时候，ViT展现比CNN更好的性能，基于此本文提出GPSA模块，将CNN具有的归纳偏置带入ViT，在ImageNet上取得了比DeiT更好的性能

代码部分

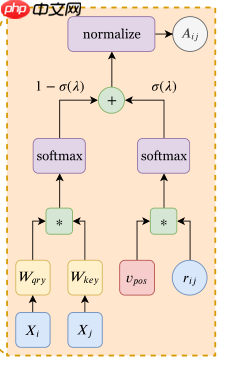

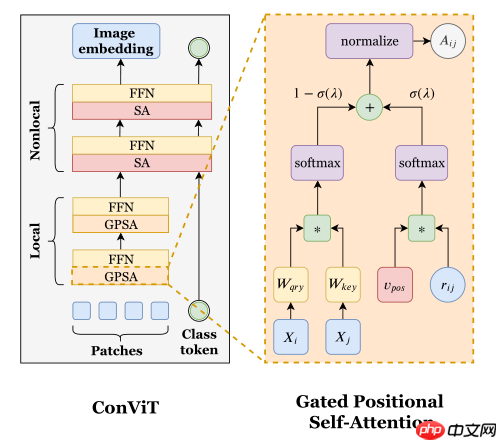

网络结构图如下

导入所需要的包

import paddleimport paddle.nn as nnimport paddle.nn.functional as Ffrom functools import partialimport numpy as np

/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/layers/utils.py:26: DeprecationWarning: `np.int` is a deprecated alias for the builtin `int`. To silence this warning, use `int` by itself. Doing this will not modify any behavior and is safe. When replacing `np.int`, you may wish to use e.g. `np.int64` or `np.int32` to specify the precision. If you wish to review your current use, check the release note link for additional information.Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations  def convert_to_list(value, n, name, dtype=np.int):

MLP设置和自定义函数

zeros_ = nn.initializer.Constant(value=0.)ones_ = nn.initializer.Constant(value=1.)trunc_normal_ = nn.initializer.TruncatedNormal(std=.02)def to_2tuple(x):    return tuple([x] * 2)def drop_path(x, drop_prob = 0., training = False):    if drop_prob == 0. or not training:        return x    keep_prob = 1 - drop_prob    shape = (x.shape[0],) + (1,) * (x.ndim - 1)      random_tensor = paddle.to_tensor(keep_prob) + paddle.rand(shape)    random_tensor = paddle.floor(random_tensor)     output = x.divide(keep_prob) * random_tensor    return outputclass DropPath(nn.Layer):    def __init__(self, drop_prob=None):        super(DropPath, self).__init__()        self.drop_prob = drop_prob    def forward(self, x):        return drop_path(x, self.drop_prob, self.training)class Identity(nn.Layer):                          def __init__(self, *args, **kwargs):        super(Identity, self).__init__()     def forward(self, input):        return inputclass Mlp(nn.Layer):    def __init__(self, in_features, hidden_features=None, out_features=None, act_layer=nn.GELU, drop=0.):        super().__init__()        out_features = out_features or in_features        hidden_features = hidden_features or in_features        self.fc1 = nn.Linear(in_features, hidden_features)        self.act = act_layer()        self.fc2 = nn.Linear(hidden_features, out_features)        self.drop = nn.Dropout(drop)    def forward(self, x):        x = self.fc1(x)        x = self.act(x)        x = self.drop(x)        x = self.fc2(x)        x = self.drop(x)        return xclass PatchEmbed(nn.Layer):    def __init__(self, img_size=224, patch_size=16, in_chans=3, embed_dim=768, norm_layer=None, flatten=True):        super().__init__()        img_size = to_2tuple(img_size)        patch_size = to_2tuple(patch_size)        self.img_size = img_size        self.patch_size = patch_size        self.grid_size = (img_size[0] // patch_size[0], img_size[1] // patch_size[1])        self.num_patches = self.grid_size[0] * self.grid_size[1]        self.flatten = flatten        self.proj = nn.Conv2D(in_chans, embed_dim, kernel_size=patch_size, stride=patch_size)        self.norm = norm_layer(embed_dim) if norm_layer else Identity()    def forward(self, x):        B, C, H, W = x.shape        assert H == self.img_size[0] and W == self.img_size[1], \            f"Input image size ({H}*{W}) doesn't match model ({self.img_size[0]}*{self.img_size[1]})."        x = self.proj(x)        if self.flatten:            x = x.flatten(2).transpose((0, 2, 1))  # BCHW -> BNC        x = self.norm(x)        return xclass HybridEmbed(nn.Layer):    def __init__(self, backbone, img_size=224, patch_size=1, feature_size=None, in_chans=3, embed_dim=768):        super().__init__()        assert isinstance(backbone, nn.Module)        img_size = to_2tuple(img_size)        patch_size = to_2tuple(patch_size)        self.img_size = img_size        self.patch_size = patch_size        self.backbone = backbone        if feature_size is None:            with paddle.no_grad():                               training = backbone.training                if training:                    backbone.eval()                o = self.backbone(paddle.zeros([1, in_chans, img_size[0], img_size[1]]))                if isinstance(o, (list, tuple)):                    o = o[-1]                  feature_dim = o.shape[1]                backbone.train(training)        else:            feature_size = to_2tuple(feature_size)            if hasattr(self.backbone, 'feature_info'):                feature_dim = self.backbone.feature_info.channels()[-1]            else:                feature_dim = self.backbone.num_features        assert feature_size[0] % patch_size[0] == 0 and feature_size[1] % patch_size[1] == 0        self.num_patches = feature_size[0] // patch_size[0] * feature_size[1] // patch_size[1]        self.proj = nn.Conv2D(feature_dim, embed_dim, kernel_size=patch_size, stride=patch_size)    def forward(self, x):        x = self.backbone(x)        if isinstance(x, (list, tuple)):            x = x[-1]          x = self.proj(x).flatten(2).transpose([0, 2, 1])        return xdef repeat(x, rep):    return paddle.to_tensor(np.tile(x.numpy(), rep))def repeat_interleave(x, rep, axis):    return paddle.to_tensor(np.repeat(x.numpy(), rep, axis=axis))def einsum(str, distances, attn_map):    d = distances.numpy()    a = attn_map.numpy()    out = np.einsum(str, (d, a))        return paddle.to_tensor(out)

网络搭建

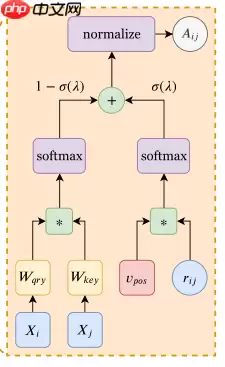

GPSA

class GPSA(nn.Layer):    def __init__(self, dim, num_heads=8, qkv_bias=False, qk_scale=None, attn_drop=0., proj_drop=0.,                 locality_strength=1., use_local_init=True):        super().__init__()        self.num_heads = num_heads        self.dim = dim        head_dim = dim // num_heads        self.scale = qk_scale or head_dim ** -0.5        self.qk = nn.Linear(dim, dim * 2, bias_attr=qkv_bias)               self.v = nn.Linear(dim, dim, bias_attr=qkv_bias)                       self.attn_drop = nn.Dropout(attn_drop)        self.proj = nn.Linear(dim, dim)        self.pos_proj = nn.Linear(3, num_heads)        self.proj_drop = nn.Dropout(proj_drop)        self.locality_strength = locality_strength        self.gating_param = self.create_parameter(shape=[self.num_heads], default_initializer=ones_)        self.add_parameter("gating_param", self.gating_param)            def forward(self, x):        B, N, C = x.shape        if not hasattr(self, 'rel_indices') or self.rel_indices.shape[1]!=N:            self.get_rel_indices(N)        attn = self.get_attention(x)        v = self.v(x).reshape([B, N, self.num_heads, C // self.num_heads]).transpose([0, 2, 1, 3])        x = (attn @ v).transpose([0, 2, 1, 3])        x = x.reshape([B, N, C])        x = self.proj(x)        x = self.proj_drop(x)        return x    def get_attention(self, x):        B, N, C = x.shape                qk = self.qk(x).reshape([B, N, 2, self.num_heads, C // self.num_heads]).transpose([2, 0, 3, 1, 4])        q, k = qk[0], qk[1]        pos_score = self.rel_indices.expand([B, -1, -1,-1])        pos_score = self.pos_proj(pos_score).transpose([0,3,1,2])         patch_score = (q @ k.transpose([0, 1, 3, 2])) * self.scale        patch_score = F.softmax(patch_score, axis=-1)        pos_score = F.softmax(pos_score, axis=-1)        gating = self.gating_param.reshape([1, -1, 1, 1])        attn = (1. - F.sigmoid(gating)) * patch_score + F.sigmoid(gating) * pos_score        attn /= attn.sum(axis=-1).unsqueeze(-1)        attn = self.attn_drop(attn)        return attn    def get_attention_map(self, x, return_map = False):        attn_map = self.get_attention(x).mean(0)         distances = self.rel_indices.squeeze()[:,:,-1]**.5        dist = einsum('nm,hnm->h', distances, attn_map)      # einsum        dist /= distances.shape[0]        if return_map:            return dist, attn_map        else:            return dist    def get_rel_indices(self, num_patches):        img_size = int(num_patches**.5)        rel_indices = paddle.zeros([1, num_patches, num_patches, 3])        ind = paddle.arange(img_size).reshape([1,-1]) - paddle.arange(img_size).reshape([-1, 1])        indx = repeat(ind, [img_size, img_size])        indy = repeat_interleave(ind, img_size, axis=0)        indy = repeat_interleave(indy, img_size, axis=1)        indd = indx**2 + indy**2        rel_indices[:,:,:,2] = indd.unsqueeze(0)        rel_indices[:,:,:,1] = indy.unsqueeze(0)        rel_indices[:,:,:,0] = indx.unsqueeze(0)        self.rel_indices = rel_indices    def local_init(self):        self.v.weight.set_value(paddle.eye(self.dim))        locality_distance = 1  # max(1,1/locality_strength**.5)        kernel_size = int(self.num_heads ** .5)        center = (kernel_size - 1) / 2 if kernel_size % 2 == 0 else kernel_size // 2        for h1 in range(kernel_size):            for h2 in range(kernel_size):                position = h1 + kernel_size * h2                self.pos_proj.weight[2, position] = -1                self.pos_proj.weight[1, position] = 2 * (h1 - center) * locality_distance                self.pos_proj.weight[0, position] = 2 * (h2 - center) * locality_distance                self.pos_proj.weight.set_value(self.pos_proj.weight * self.locality_strength)class MHSA(nn.Layer):    def __init__(self, dim, num_heads=8, qkv_bias=False, qk_scale=None, attn_drop=0., proj_drop=0.):        super().__init__()        self.num_heads = num_heads        head_dim = dim // num_heads        self.scale = qk_scale or head_dim ** -0.5        self.qkv = nn.Linear(dim, dim * 3, bias_attr=qkv_bias)        self.attn_drop = nn.Dropout(attn_drop)        self.proj = nn.Linear(dim, dim)        self.proj_drop = nn.Dropout(proj_drop)    def get_attention_map(self, x, return_map = False):        B, N, C = x.shape        qkv = self.qkv(x).reshape([B, N, 3, self.num_heads, C // self.num_heads]).transpose([2, 0, 3, 1, 4])        q, k, v = qkv[0], qkv[1], qkv[2]        attn_map = (q @ k.transpose([0, 1, 3, 2])) * self.scale        attn_map = F.softmax(attn_map, axis=-1).mean(0)        img_size = int(N**.5)        ind = paddle.arange(img_size).reshape([1,-1]) - paddle.arange(img_size).reshape([-1, 1])        indx = repeat(ind, [img_size, img_size])        indy = repeat_interleave(ind, img_size, axis=0)        indy = repeat_interleave(indy, img_size, axis=1)        indd = indx**2 + indy**2        distances = indd**.5                        dist = einsum('nm,hnm->h', distances, attn_map)   # einsum        dist /= N                if return_map:            return dist, attn_map        else:            return dist                def forward(self, x):        B, N, C = x.shape        qkv = self.qkv(x).reshape([B, N, 3, self.num_heads, C // self.num_heads]).transpose([2, 0, 3, 1, 4])        q, k, v = qkv[0], qkv[1], qkv[2]        attn = (q @ k.transpose([0, 1, 3, 2])) * self.scale        attn = F.softmax(attn, axis=-1)        attn = self.attn_drop(attn)        x = (attn @ v).transpose([0,2,1,3]).reshape([B, N, C])        x = self.proj(x)        x = self.proj_drop(x)        return x    class Block(nn.Layer):    def __init__(self, dim, num_heads,  mlp_ratio=4., qkv_bias=False, qk_scale=None, drop=0., attn_drop=0.,                 drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm, use_gpsa=True, **kwargs):        super().__init__()        self.norm1 = norm_layer(dim)        self.use_gpsa = use_gpsa        if self.use_gpsa:            self.attn = GPSA(dim, num_heads=num_heads, qkv_bias=qkv_bias, qk_scale=qk_scale, attn_drop=attn_drop, proj_drop=drop, **kwargs)        else:            self.attn = MHSA(dim, num_heads=num_heads, qkv_bias=qkv_bias, qk_scale=qk_scale, attn_drop=attn_drop, proj_drop=drop, **kwargs)        self.drop_path = DropPath(drop_path) if drop_path > 0. else Identity()        self.norm2 = norm_layer(dim)        mlp_hidden_dim = int(dim * mlp_ratio)        self.mlp = Mlp(in_features=dim, hidden_features=mlp_hidden_dim, act_layer=act_layer, drop=drop)    def forward(self, x):        x = x + self.drop_path(self.attn(self.norm1(x)))        x = x + self.drop_path(self.mlp(self.norm2(x)))        return x    class VisionTransformer(nn.Layer):    """ Vision Transformer with support for patch or hybrid CNN input stage    """    def __init__(self, img_size=224, patch_size=16, in_chans=3, num_classes=1000, embed_dim=48, depth=12,                 num_heads=12, mlp_ratio=4., qkv_bias=False, qk_scale=None, drop_rate=0., attn_drop_rate=0.,                 drop_path_rate=0., hybrid_backbone=None, norm_layer=nn.LayerNorm, global_pool=None,                 local_up_to_layer=10, locality_strength=1., use_pos_embed=True):        super().__init__()        embed_dim *= num_heads        self.num_classes = num_classes        self.local_up_to_layer = local_up_to_layer        self.num_features = self.embed_dim = embed_dim          self.use_pos_embed = use_pos_embed        if hybrid_backbone is not None:            self.patch_embed = HybridEmbed(                hybrid_backbone, img_size=img_size, in_chans=in_chans, embed_dim=embed_dim)        else:            self.patch_embed = PatchEmbed(                img_size=img_size, patch_size=patch_size, in_chans=in_chans, embed_dim=embed_dim)        num_patches = self.patch_embed.num_patches        self.num_patches = num_patches        self.cls_token = self.create_parameter(shape=[1, 1, embed_dim], default_initializer=nn.initializer.TruncatedNormal(mean=0.0, std=.02))        self.add_parameter("cls_token", self.cls_token)        self.pos_drop = nn.Dropout(p=drop_rate)        if self.use_pos_embed:            self.pos_embed = self.create_parameter(shape=[1, num_patches, embed_dim], default_initializer=nn.initializer.TruncatedNormal(mean=0.0, std=.02))            self.add_parameter("pos_embed", self.pos_embed)        dpr = [x for x in paddle.linspace(0, drop_path_rate, depth)]          self.blocks = nn.LayerList([            Block(                dim=embed_dim, num_heads=num_heads, mlp_ratio=mlp_ratio, qkv_bias=qkv_bias, qk_scale=qk_scale,                drop=drop_rate, attn_drop=attn_drop_rate, drop_path=dpr[i], norm_layer=norm_layer,                use_gpsa=True,                locality_strength=locality_strength)            if i 0 else Identity()        self.apply(self._init_weights)        for n, m in self.named_sublayers():            if hasattr(m, 'local_init'):                m.local_init()    def _init_weights(self, m):        if isinstance(m, nn.Linear):            trunc_normal_(m.weight)            if isinstance(m, nn.Linear) and m.bias is not None:                zeros_(m.bias)        elif isinstance(m, nn.LayerNorm):            zeros_(m.bias)            ones_(m.weight)    def forward_features(self, x):        B = x.shape[0]        x = self.patch_embed(x)        cls_tokens = self.cls_token.expand([B, -1, -1])        if self.use_pos_embed:            x = x + self.pos_embed        x = self.pos_drop(x)        for u,blk in enumerate(self.blocks):            if u == self.local_up_to_layer :                x = paddle.concat((cls_tokens, x), axis=1)            x = blk(x)        x = self.norm(x)        return x[:, 0]    def forward(self, x):        x = self.forward_features(x)        x = self.head(x)        return x

模型定义

def convit_tiny(**kwargs):    model = VisionTransformer(        num_heads=4,        norm_layer=partial(nn.LayerNorm, epsilon=1e-6), **kwargs)    return modeldef convit_small(**kwargs):    model = VisionTransformer(        num_heads=9,        norm_layer=partial(nn.LayerNorm, epsilon=1e-6), **kwargs)    return modeldef convit_base(**kwargs):    model = VisionTransformer(        num_heads=16,        norm_layer=partial(nn.LayerNorm, epsilon=1e-6), **kwargs)    return model

高层API查看模型

paddle.Model(convit_base()).summary((1, 3, 224, 224))

--------------------------------------------------------------------------- Layer (type)       Input Shape          Output Shape         Param #    ===========================================================================   Conv2D-1      [[1, 3, 224, 224]]    [1, 768, 14, 14]       590,592      Identity-1      [[1, 196, 768]]       [1, 196, 768]            0        PatchEmbed-1    [[1, 3, 224, 224]]     [1, 196, 768]            0          Dropout-1      [[1, 196, 768]]       [1, 196, 768]            0         LayerNorm-1     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-1       [[1, 196, 768]]       [1, 196, 1536]       1,179,648      Linear-4      [[1, 196, 196, 3]]   [1, 196, 196, 16]         64          Dropout-2    [[1, 16, 196, 196]]   [1, 16, 196, 196]          0          Linear-2       [[1, 196, 768]]       [1, 196, 768]         589,824       Linear-3       [[1, 196, 768]]       [1, 196, 768]         590,592       Dropout-3      [[1, 196, 768]]       [1, 196, 768]            0           GPSA-1        [[1, 196, 768]]       [1, 196, 768]           16         Identity-2      [[1, 196, 768]]       [1, 196, 768]            0         LayerNorm-2     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-5       [[1, 196, 768]]       [1, 196, 3072]       2,362,368       GELU-1        [[1, 196, 3072]]      [1, 196, 3072]           0          Dropout-4      [[1, 196, 768]]       [1, 196, 768]            0          Linear-6       [[1, 196, 3072]]      [1, 196, 768]        2,360,064        Mlp-1        [[1, 196, 768]]       [1, 196, 768]            0           Block-1       [[1, 196, 768]]       [1, 196, 768]            0         LayerNorm-3     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-7       [[1, 196, 768]]       [1, 196, 1536]       1,179,648      Linear-10     [[1, 196, 196, 3]]   [1, 196, 196, 16]         64          Dropout-5    [[1, 16, 196, 196]]   [1, 16, 196, 196]          0          Linear-8       [[1, 196, 768]]       [1, 196, 768]         589,824       Linear-9       [[1, 196, 768]]       [1, 196, 768]         590,592       Dropout-6      [[1, 196, 768]]       [1, 196, 768]            0           GPSA-2        [[1, 196, 768]]       [1, 196, 768]           16         Identity-3      [[1, 196, 768]]       [1, 196, 768]            0         LayerNorm-4     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-11      [[1, 196, 768]]       [1, 196, 3072]       2,362,368       GELU-2        [[1, 196, 3072]]      [1, 196, 3072]           0          Dropout-7      [[1, 196, 768]]       [1, 196, 768]            0          Linear-12      [[1, 196, 3072]]      [1, 196, 768]        2,360,064        Mlp-2        [[1, 196, 768]]       [1, 196, 768]            0           Block-2       [[1, 196, 768]]       [1, 196, 768]            0         LayerNorm-5     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-13      [[1, 196, 768]]       [1, 196, 1536]       1,179,648      Linear-16     [[1, 196, 196, 3]]   [1, 196, 196, 16]         64          Dropout-8    [[1, 16, 196, 196]]   [1, 16, 196, 196]          0          Linear-14      [[1, 196, 768]]       [1, 196, 768]         589,824       Linear-15      [[1, 196, 768]]       [1, 196, 768]         590,592       Dropout-9      [[1, 196, 768]]       [1, 196, 768]            0           GPSA-3        [[1, 196, 768]]       [1, 196, 768]           16         Identity-4      [[1, 196, 768]]       [1, 196, 768]            0         LayerNorm-6     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-17      [[1, 196, 768]]       [1, 196, 3072]       2,362,368       GELU-3        [[1, 196, 3072]]      [1, 196, 3072]           0         Dropout-10      [[1, 196, 768]]       [1, 196, 768]            0          Linear-18      [[1, 196, 3072]]      [1, 196, 768]        2,360,064        Mlp-3        [[1, 196, 768]]       [1, 196, 768]            0           Block-3       [[1, 196, 768]]       [1, 196, 768]            0         LayerNorm-7     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-19      [[1, 196, 768]]       [1, 196, 1536]       1,179,648      Linear-22     [[1, 196, 196, 3]]   [1, 196, 196, 16]         64         Dropout-11    [[1, 16, 196, 196]]   [1, 16, 196, 196]          0          Linear-20      [[1, 196, 768]]       [1, 196, 768]         589,824       Linear-21      [[1, 196, 768]]       [1, 196, 768]         590,592      Dropout-12      [[1, 196, 768]]       [1, 196, 768]            0           GPSA-4        [[1, 196, 768]]       [1, 196, 768]           16         Identity-5      [[1, 196, 768]]       [1, 196, 768]            0         LayerNorm-8     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-23      [[1, 196, 768]]       [1, 196, 3072]       2,362,368       GELU-4        [[1, 196, 3072]]      [1, 196, 3072]           0         Dropout-13      [[1, 196, 768]]       [1, 196, 768]            0          Linear-24      [[1, 196, 3072]]      [1, 196, 768]        2,360,064        Mlp-4        [[1, 196, 768]]       [1, 196, 768]            0           Block-4       [[1, 196, 768]]       [1, 196, 768]            0         LayerNorm-9     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-25      [[1, 196, 768]]       [1, 196, 1536]       1,179,648      Linear-28     [[1, 196, 196, 3]]   [1, 196, 196, 16]         64         Dropout-14    [[1, 16, 196, 196]]   [1, 16, 196, 196]          0          Linear-26      [[1, 196, 768]]       [1, 196, 768]         589,824       Linear-27      [[1, 196, 768]]       [1, 196, 768]         590,592      Dropout-15      [[1, 196, 768]]       [1, 196, 768]            0           GPSA-5        [[1, 196, 768]]       [1, 196, 768]           16         Identity-6      [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-10     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-29      [[1, 196, 768]]       [1, 196, 3072]       2,362,368       GELU-5        [[1, 196, 3072]]      [1, 196, 3072]           0         Dropout-16      [[1, 196, 768]]       [1, 196, 768]            0          Linear-30      [[1, 196, 3072]]      [1, 196, 768]        2,360,064        Mlp-5        [[1, 196, 768]]       [1, 196, 768]            0           Block-5       [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-11     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-31      [[1, 196, 768]]       [1, 196, 1536]       1,179,648      Linear-34     [[1, 196, 196, 3]]   [1, 196, 196, 16]         64         Dropout-17    [[1, 16, 196, 196]]   [1, 16, 196, 196]          0          Linear-32      [[1, 196, 768]]       [1, 196, 768]         589,824       Linear-33      [[1, 196, 768]]       [1, 196, 768]         590,592      Dropout-18      [[1, 196, 768]]       [1, 196, 768]            0           GPSA-6        [[1, 196, 768]]       [1, 196, 768]           16         Identity-7      [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-12     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-35      [[1, 196, 768]]       [1, 196, 3072]       2,362,368       GELU-6        [[1, 196, 3072]]      [1, 196, 3072]           0         Dropout-19      [[1, 196, 768]]       [1, 196, 768]            0          Linear-36      [[1, 196, 3072]]      [1, 196, 768]        2,360,064        Mlp-6        [[1, 196, 768]]       [1, 196, 768]            0           Block-6       [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-13     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-37      [[1, 196, 768]]       [1, 196, 1536]       1,179,648      Linear-40     [[1, 196, 196, 3]]   [1, 196, 196, 16]         64         Dropout-20    [[1, 16, 196, 196]]   [1, 16, 196, 196]          0          Linear-38      [[1, 196, 768]]       [1, 196, 768]         589,824       Linear-39      [[1, 196, 768]]       [1, 196, 768]         590,592      Dropout-21      [[1, 196, 768]]       [1, 196, 768]            0           GPSA-7        [[1, 196, 768]]       [1, 196, 768]           16         Identity-8      [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-14     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-41      [[1, 196, 768]]       [1, 196, 3072]       2,362,368       GELU-7        [[1, 196, 3072]]      [1, 196, 3072]           0         Dropout-22      [[1, 196, 768]]       [1, 196, 768]            0          Linear-42      [[1, 196, 3072]]      [1, 196, 768]        2,360,064        Mlp-7        [[1, 196, 768]]       [1, 196, 768]            0           Block-7       [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-15     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-43      [[1, 196, 768]]       [1, 196, 1536]       1,179,648      Linear-46     [[1, 196, 196, 3]]   [1, 196, 196, 16]         64         Dropout-23    [[1, 16, 196, 196]]   [1, 16, 196, 196]          0          Linear-44      [[1, 196, 768]]       [1, 196, 768]         589,824       Linear-45      [[1, 196, 768]]       [1, 196, 768]         590,592      Dropout-24      [[1, 196, 768]]       [1, 196, 768]            0           GPSA-8        [[1, 196, 768]]       [1, 196, 768]           16         Identity-9      [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-16     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-47      [[1, 196, 768]]       [1, 196, 3072]       2,362,368       GELU-8        [[1, 196, 3072]]      [1, 196, 3072]           0         Dropout-25      [[1, 196, 768]]       [1, 196, 768]            0          Linear-48      [[1, 196, 3072]]      [1, 196, 768]        2,360,064        Mlp-8        [[1, 196, 768]]       [1, 196, 768]            0           Block-8       [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-17     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-49      [[1, 196, 768]]       [1, 196, 1536]       1,179,648      Linear-52     [[1, 196, 196, 3]]   [1, 196, 196, 16]         64         Dropout-26    [[1, 16, 196, 196]]   [1, 16, 196, 196]          0          Linear-50      [[1, 196, 768]]       [1, 196, 768]         589,824       Linear-51      [[1, 196, 768]]       [1, 196, 768]         590,592      Dropout-27      [[1, 196, 768]]       [1, 196, 768]            0           GPSA-9        [[1, 196, 768]]       [1, 196, 768]           16         Identity-10     [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-18     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-53      [[1, 196, 768]]       [1, 196, 3072]       2,362,368       GELU-9        [[1, 196, 3072]]      [1, 196, 3072]           0         Dropout-28      [[1, 196, 768]]       [1, 196, 768]            0          Linear-54      [[1, 196, 3072]]      [1, 196, 768]        2,360,064        Mlp-9        [[1, 196, 768]]       [1, 196, 768]            0           Block-9       [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-19     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-55      [[1, 196, 768]]       [1, 196, 1536]       1,179,648      Linear-58     [[1, 196, 196, 3]]   [1, 196, 196, 16]         64         Dropout-29    [[1, 16, 196, 196]]   [1, 16, 196, 196]          0          Linear-56      [[1, 196, 768]]       [1, 196, 768]         589,824       Linear-57      [[1, 196, 768]]       [1, 196, 768]         590,592      Dropout-30      [[1, 196, 768]]       [1, 196, 768]            0           GPSA-10       [[1, 196, 768]]       [1, 196, 768]           16         Identity-11     [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-20     [[1, 196, 768]]       [1, 196, 768]          1,536        Linear-59      [[1, 196, 768]]       [1, 196, 3072]       2,362,368       GELU-10       [[1, 196, 3072]]      [1, 196, 3072]           0         Dropout-31      [[1, 196, 768]]       [1, 196, 768]            0          Linear-60      [[1, 196, 3072]]      [1, 196, 768]        2,360,064       Mlp-10        [[1, 196, 768]]       [1, 196, 768]            0          Block-10       [[1, 196, 768]]       [1, 196, 768]            0        LayerNorm-21     [[1, 197, 768]]       [1, 197, 768]          1,536        Linear-61      [[1, 197, 768]]       [1, 197, 2304]       1,769,472     Dropout-32    [[1, 16, 197, 197]]   [1, 16, 197, 197]          0          Linear-62      [[1, 197, 768]]       [1, 197, 768]         590,592      Dropout-33      [[1, 197, 768]]       [1, 197, 768]            0           MHSA-1        [[1, 197, 768]]       [1, 197, 768]            0         Identity-12     [[1, 197, 768]]       [1, 197, 768]            0        LayerNorm-22     [[1, 197, 768]]       [1, 197, 768]          1,536        Linear-63      [[1, 197, 768]]       [1, 197, 3072]       2,362,368       GELU-11       [[1, 197, 3072]]      [1, 197, 3072]           0         Dropout-34      [[1, 197, 768]]       [1, 197, 768]            0          Linear-64      [[1, 197, 3072]]      [1, 197, 768]        2,360,064       Mlp-11        [[1, 197, 768]]       [1, 197, 768]            0          Block-11       [[1, 197, 768]]       [1, 197, 768]            0        LayerNorm-23     [[1, 197, 768]]       [1, 197, 768]          1,536        Linear-65      [[1, 197, 768]]       [1, 197, 2304]       1,769,472     Dropout-35    [[1, 16, 197, 197]]   [1, 16, 197, 197]          0          Linear-66      [[1, 197, 768]]       [1, 197, 768]         590,592      Dropout-36      [[1, 197, 768]]       [1, 197, 768]            0           MHSA-2        [[1, 197, 768]]       [1, 197, 768]            0         Identity-13     [[1, 197, 768]]       [1, 197, 768]            0        LayerNorm-24     [[1, 197, 768]]       [1, 197, 768]          1,536        Linear-67      [[1, 197, 768]]       [1, 197, 3072]       2,362,368       GELU-12       [[1, 197, 3072]]      [1, 197, 3072]           0         Dropout-37      [[1, 197, 768]]       [1, 197, 768]            0          Linear-68      [[1, 197, 3072]]      [1, 197, 768]        2,360,064       Mlp-12        [[1, 197, 768]]       [1, 197, 768]            0          Block-12       [[1, 197, 768]]       [1, 197, 768]            0        LayerNorm-25     [[1, 197, 768]]       [1, 197, 768]          1,536        Linear-69         [[1, 768]]           [1, 1000]           769,000    ===========================================================================Total params: 86,388,744Trainable params: 86,388,744Non-trainable params: 0---------------------------------------------------------------------------Input size (MB): 0.57Forward/backward pass size (MB): 398.67Params size (MB): 329.55Estimated Total Size (MB): 728.79---------------------------------------------------------------------------

{'total_params': 86388744, 'trainable_params': 86388744}

在Cifar10数据集验证效果

采用Cifar10数据集，无过多的数据增强

数据准备

import paddle.vision.transforms as Tfrom paddle.vision.datasets import Cifar10paddle.set_device('gpu')#数据准备transform = T.Compose([    T.Resize(size=(224,224)),    T.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225],data_format='HWC'),    T.ToTensor()])train_dataset = Cifar10(mode='train', transform=transform)val_dataset = Cifar10(mode='test',  transform=transform)

Cache file /home/aistudio/.cache/paddle/dataset/cifar/cifar-10-python.tar.gz not found, downloading https://dataset.bj.bcebos.com/cifar/cifar-10-python.tar.gz Begin to downloadDownload finished

模型准备

model=paddle.Model(convit_small(num_classes=10))

开始训练

由于时间篇幅只训练6轮，感兴趣的同学可以继续训练

model.prepare(optimizer=paddle.optimizer.Adam(learning_rate=0.001,parameters=model.parameters()),              loss=paddle.nn.CrossEntropyLoss(),              metrics=paddle.metric.Accuracy())visualdl=paddle.callbacks.VisualDL(log_dir='visual_log') # 开启训练可视化model.fit(    train_data=train_dataset,     eval_data=val_dataset,     batch_size=64,     epochs=6,     verbose=1,    callbacks=[visualdl] )

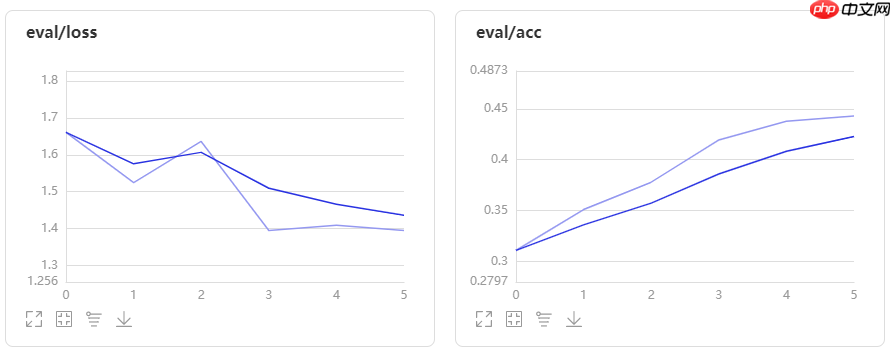

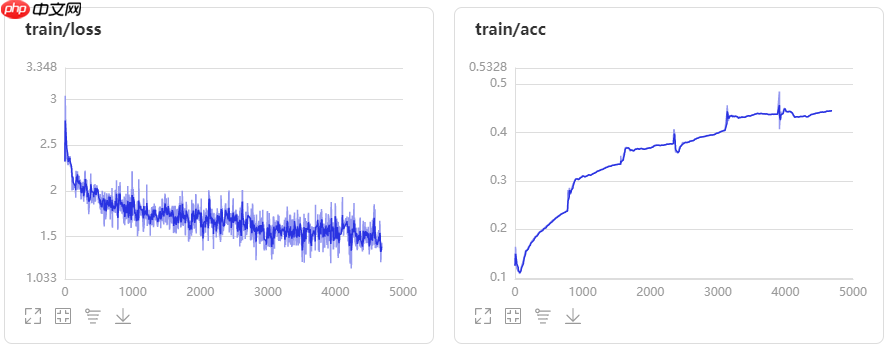

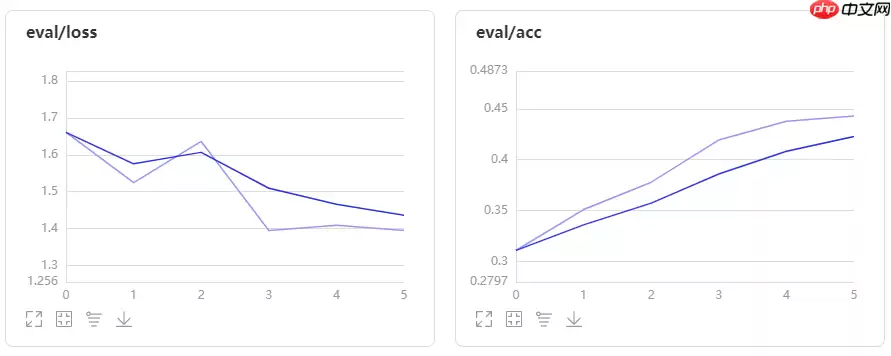

训练可视化

预训练权重

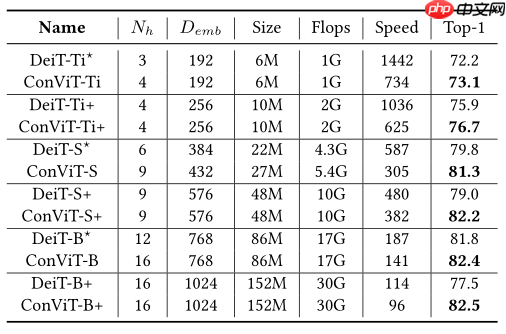

本项目给出了模型预训练权重，在 ImageNet 验证集效果如下

# convit tiny model = convit_tiny()model.set_state_dict(paddle.load('data/data93780/convit_tiny.pdparams'))# convit small model = convit_small()model.set_state_dict(paddle.load('data/data93780/convit_small.pdparams'))# convit basemodel = convit_base()model.set_state_dict(paddle.load('data/data93780/convit_base.pdparams'))

总结

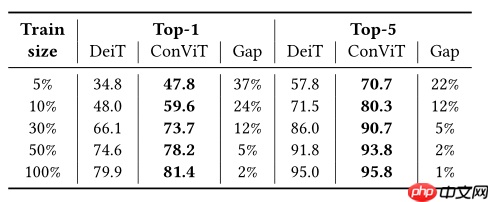

实验表明，相比DeiT，因为增加了CNN归纳偏置优点，少样本下ConViT性能更好

数据不充分情况下，具有归纳偏置的CNN性能比ViT好，数据充足时候，ViT性能要比CNN好

ConViT结合了卷积归纳偏置优点，但train from scratch问题依旧存在
