ViP：类MLP架构又一狂欢

本文复现程明明、颜水成团队的MLP相关论文，提出引入h、w、c三维信息编码机制及加权融合方式的模型。该模型无需空域卷积、注意力及额外da尺度训练数据，性能与CNN、ViT相当。文中展示了模型组网、定义、结构可视化等内容，还进行了Cifar10验证性能测试，指出类MLP方法有较大改进空间。

前言

Hi guy，我们又见面了，这次来复现一篇 MLP 相关的论文

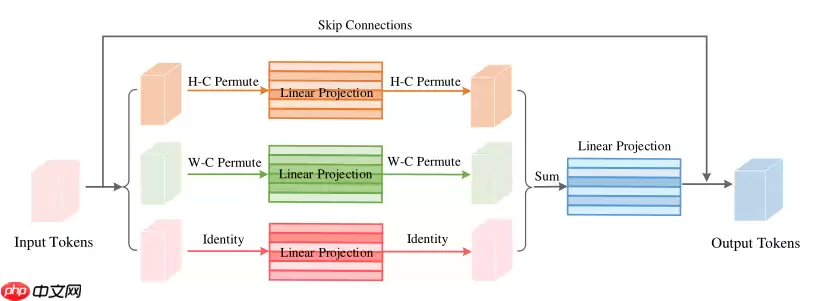

本文是程明明、颜水成团队在MLP上新的探索，引入h、w、c三维信息编码机制，提出加权融合方式

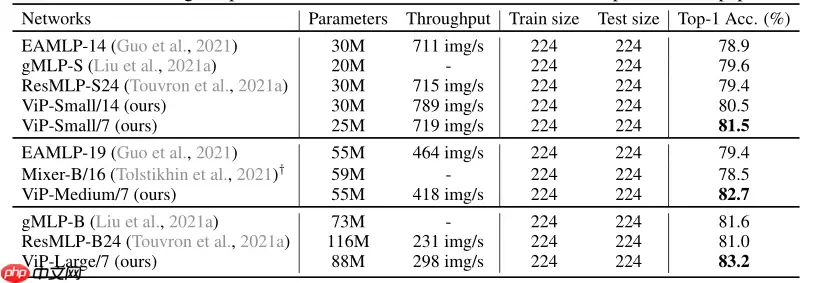

性能如下，具有和CNN、ViT模型相当的竞争力

完整代码

导入所需要的包

import paddleimport paddle.nn as nnimport paddle.nn.functional as Ftrunc_normal_ = nn.initializer.TruncatedNormal(std=.02)zeros_ = nn.initializer.Constant(value=0.)ones_ = nn.initializer.Constant(value=1.)

/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/layers/utils.py:26: DeprecationWarning: `np.int` is a deprecated alias for the builtin `int`. To silence this warning, use `int` by itself. Doing this will not modify any behavior and is safe. When replacing `np.int`, you may wish to use e.g. `np.int64` or `np.int32` to specify the precision. If you wish to review your current use, check the release note link for additional information.Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations  def convert_to_list(value, n, name, dtype=np.int):

基础函数定义

def drop_path(x, drop_prob = 0., training = False):    if drop_prob == 0. or not training:        return x    keep_prob = 1 - drop_prob    shape = (x.shape[0],) + (1,) * (x.ndim - 1)      random_tensor = paddle.to_tensor(keep_prob) + paddle.rand(shape)    random_tensor = paddle.floor(random_tensor)     output = x.divide(keep_prob) * random_tensor    return outputclass DropPath(nn.Layer):    def __init__(self, drop_prob=None):        super(DropPath, self).__init__()        self.drop_prob = drop_prob    def forward(self, x):        return drop_path(x, self.drop_prob, self.training)class Identity(nn.Layer):                          def __init__(self, *args, **kwargs):        super(Identity, self).__init__()     def forward(self, input):        return input

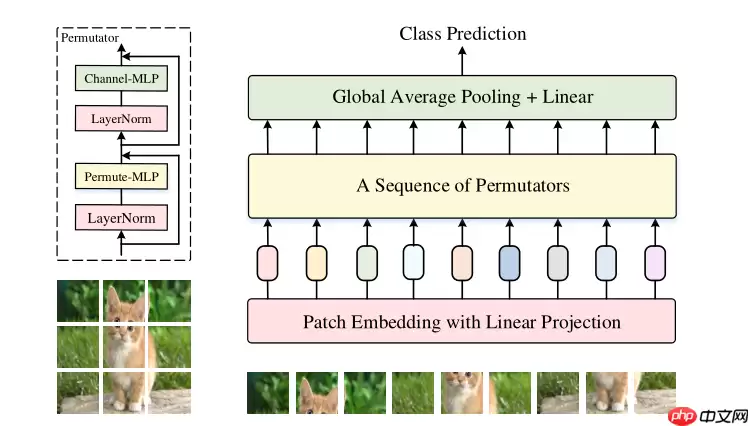

模型组网

class Mlp(nn.Layer):    def __init__(self, in_features, hidden_features=None, out_features=None, act_layer=nn.GELU, drop=0.):        super().__init__()        out_features = out_features or in_features        hidden_features = hidden_features or in_features        self.fc1 = nn.Linear(in_features, hidden_features)        self.act = act_layer()        self.fc2 = nn.Linear(hidden_features, out_features)        self.drop = nn.Dropout(drop)    def forward(self, x):        x = self.fc1(x)        x = self.act(x)        x = self.drop(x)        x = self.fc2(x)        x = self.drop(x)        return xclass WeightedPermuteMLP(nn.Layer):    def __init__(self, dim, segment_dim=8, qkv_bias=False, qk_scale=None, attn_drop=0., proj_drop=0.):        super().__init__()        self.segment_dim = segment_dim        self.mlp_c = nn.Linear(dim, dim, bias_attr=qkv_bias)        self.mlp_h = nn.Linear(dim, dim, bias_attr=qkv_bias)        self.mlp_w = nn.Linear(dim, dim, bias_attr=qkv_bias)        self.reweight = Mlp(dim, dim // 4, dim *3)                self.proj = nn.Linear(dim, dim)        self.proj_drop = nn.Dropout(proj_drop)    def forward(self, x):        B, H, W, C = x.shape        S = C // self.segment_dim        h = x.reshape([B, H, W, self.segment_dim, S]).transpose([0, 3, 2, 1, 4]).reshape([B, self.segment_dim, W, H*S])        h = self.mlp_h(h).reshape([B, self.segment_dim, W, H, S]).transpose([0, 3, 2, 1, 4]).reshape([B, H, W, C])        w = x.reshape([B, H, W, self.segment_dim, S]).transpose([0, 1, 3, 2, 4]).reshape([B, H, self.segment_dim, W*S])        w = self.mlp_w(w).reshape([B, H, self.segment_dim, W, S]).transpose([0, 1, 3, 2, 4]).reshape([B, H, W, C])        c = self.mlp_c(x)                a = (h + w + c).transpose([0, 3, 1, 2]).flatten(2).mean(2)        a = self.reweight(a).reshape([B, C, 3]).transpose([2, 0, 1])        a = F.softmax(a, axis=0).unsqueeze(2).unsqueeze(2)        x = h * a[0] + w * a[1] + c * a[2]        x = self.proj(x)        x = self.proj_drop(x)        return xclass PermutatorBlock(nn.Layer):    def __init__(self, dim, segment_dim, mlp_ratio=4., qkv_bias=False, qk_scale=None, drop=0., attn_drop=0.,                 drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm, skip_lam=1.0, mlp_fn = WeightedPermuteMLP):        super().__init__()        self.norm1 = norm_layer(dim)        self.attn = mlp_fn(dim, segment_dim=segment_dim, qkv_bias=qkv_bias, qk_scale=None, attn_drop=attn_drop)        # NOTE: drop path for stochastic depth, we shall see if this is better than dropout here        self.drop_path = DropPath(drop_path) if drop_path > 0. else Identity()        self.norm2 = norm_layer(dim)        mlp_hidden_dim = int(dim * mlp_ratio)        self.mlp = Mlp(in_features=dim, hidden_features=mlp_hidden_dim, act_layer=act_layer)        self.skip_lam = skip_lam    def forward(self, x):        x = x + self.drop_path(self.attn(self.norm1(x))) / self.skip_lam        x = x + self.drop_path(self.mlp(self.norm2(x))) / self.skip_lam        return xclass PatchEmbed(nn.Layer):    """ Image to Patch Embedding    """    def __init__(self, img_size=224, patch_size=16, in_chans=3, embed_dim=768):        super().__init__()        self.proj = nn.Conv2D(in_chans, embed_dim, kernel_size=patch_size, stride=patch_size)    def forward(self, x):        x = self.proj(x) # B, C, H, W        return xclass Downsample(nn.Layer):    """ Image to Patch Embedding    """    def __init__(self, in_embed_dim, out_embed_dim, patch_size):        super().__init__()        self.proj = nn.Conv2D(in_embed_dim, out_embed_dim, kernel_size=patch_size, stride=patch_size)    def forward(self, x):        x = x.transpose([0, 3, 1, 2])        x = self.proj(x) # B, C, H, W        x = x.transpose([0, 2, 3, 1])        return xdef basic_blocks(dim, index, layers, segment_dim, mlp_ratio=3., qkv_bias=False, qk_scale=None, \    attn_drop=0, drop_path_rate=0., skip_lam=1.0, mlp_fn = WeightedPermuteMLP, **kwargs):    blocks = []    for block_idx in range(layers[index]):        block_dpr = drop_path_rate * (block_idx + sum(layers[:index])) / (sum(layers) - 1)        blocks.append(PermutatorBlock(dim, segment_dim, mlp_ratio=mlp_ratio, qkv_bias=qkv_bias, qk_scale=qk_scale,\            attn_drop=attn_drop, drop_path=block_dpr, skip_lam=skip_lam, mlp_fn = mlp_fn))    blocks = nn.Sequential(*blocks)    return blocksclass VisionPermutator(nn.Layer):    """ Vision Permutator    """    def __init__(self, layers, img_size=224, patch_size=4, in_chans=3, num_classes=1000,        embed_dims=None, transitions=None, segment_dim=None, mlp_ratios=None, skip_lam=1.0,        qkv_bias=False, qk_scale=None, drop_rate=0., attn_drop_rate=0., drop_path_rate=0.,        norm_layer=nn.LayerNorm,mlp_fn = WeightedPermuteMLP):        super().__init__()        self.num_classes = num_classes        self.patch_embed = PatchEmbed(img_size = img_size, patch_size=patch_size, in_chans=in_chans, embed_dim=embed_dims[0])        network = []        for i in range(len(layers)):            stage = basic_blocks(embed_dims[i], i, layers, segment_dim[i], mlp_ratio=mlp_ratios[i], qkv_bias=qkv_bias,                    qk_scale=qk_scale, attn_drop=attn_drop_rate, drop_path_rate=drop_path_rate, norm_layer=norm_layer, skip_lam=skip_lam,                    mlp_fn = mlp_fn)            network.append(stage)            if i >= len(layers) - 1:                break            if transitions[i] or embed_dims[i] != embed_dims[i+1]:                patch_size = 2 if transitions[i] else 1                network.append(Downsample(embed_dims[i], embed_dims[i+1], patch_size))        self.network = nn.LayerList(network)        self.norm = norm_layer(embed_dims[-1])        # Classifier head        self.head = nn.Linear(embed_dims[-1], num_classes) if num_classes > 0 else Identity()        self.apply(self._init_weights)    def _init_weights(self, m):        if isinstance(m, nn.Linear):            trunc_normal_(m.weight)            if isinstance(m, nn.Linear) and m.bias is not None:                zeros_(m.bias)        elif isinstance(m, nn.LayerNorm):            zeros_(m.bias)            ones_(m.weight)    def forward_embeddings(self, x):        x = self.patch_embed(x)        # B,C,H,W-> B,H,W,C        x = x.transpose([0, 2, 3, 1])        return x    def forward_tokens(self,x):        for idx, block in enumerate(self.network):            x = block(x)        B, H, W, C = x.shape        x = x.reshape([B, -1, C])        return x    def forward(self, x):        x = self.forward_embeddings(x)        # B, H, W, C -> B, N, C        x = self.forward_tokens(x)        x = self.norm(x)        return self.head(x.mean(1))

模型定义

def vip_s14(**kwargs):    layers = [4, 3, 8, 3]    transitions = [False, False, False, False]    segment_dim = [16, 16, 16, 16]    mlp_ratios = [3, 3, 3, 3]    embed_dims = [384, 384, 384, 384]    model = VisionPermutator(layers, embed_dims=embed_dims, patch_size=14, transitions=transitions,        segment_dim=segment_dim, mlp_ratios=mlp_ratios, mlp_fn=WeightedPermuteMLP, **kwargs)    return modeldef vip_s7(**kwargs):    layers = [4, 3, 8, 3]    transitions = [True, False, False, False]    segment_dim = [32, 16, 16, 16]    mlp_ratios = [3, 3, 3, 3]    embed_dims = [192, 384, 384, 384]    model = VisionPermutator(layers, embed_dims=embed_dims, patch_size=7, transitions=transitions,        segment_dim=segment_dim, mlp_ratios=mlp_ratios, mlp_fn=WeightedPermuteMLP, **kwargs)    return modeldef vip_m7(**kwargs):    layers = [4, 3, 14, 3]    transitions = [False, True, False, False]    segment_dim = [32, 32, 16, 16]    mlp_ratios = [3, 3, 3, 3]    embed_dims = [256, 256, 512, 512]    model = VisionPermutator(layers, embed_dims=embed_dims, patch_size=7, transitions=transitions,        segment_dim=segment_dim, mlp_ratios=mlp_ratios, mlp_fn=WeightedPermuteMLP, **kwargs)    return modeldef vip_l7(**kwargs):    layers = [8, 8, 16, 4]    transitions = [True, False, False, False]    segment_dim = [32, 16, 16, 16]    mlp_ratios = [3, 3, 3, 3]    embed_dims = [256, 512, 512, 512]    model = VisionPermutator(layers, embed_dims=embed_dims, patch_size=7, transitions=transitions,        segment_dim=segment_dim, mlp_ratios=mlp_ratios, mlp_fn=WeightedPermuteMLP, **kwargs)    return model

模型结构可视化

paddle.Model(vip_s7()).summary((1,3,224,224))

---------------------------------------------------------------------------------    Layer (type)          Input Shape          Output Shape         Param #    =================================================================================      Conv2D-1         [[1, 3, 224, 224]]    [1, 192, 32, 32]       28,416         PatchEmbed-1       [[1, 3, 224, 224]]    [1, 192, 32, 32]          0            LayerNorm-1       [[1, 32, 32, 192]]    [1, 32, 32, 192]         384            Linear-2         [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-3         [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-1         [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-4             [[1, 192]]            [1, 48]             9,264            GELU-1              [[1, 48]]             [1, 48]               0             Dropout-1            [[1, 576]]            [1, 576]              0             Linear-5             [[1, 48]]             [1, 576]           28,224             Mlp-1              [[1, 192]]            [1, 576]              0             Linear-6         [[1, 32, 32, 192]]    [1, 32, 32, 192]       37,056           Dropout-2        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0       WeightedPermuteMLP-1   [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            Identity-1        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            LayerNorm-2       [[1, 32, 32, 192]]    [1, 32, 32, 192]         384            Linear-7         [[1, 32, 32, 192]]    [1, 32, 32, 576]       111,168           GELU-2          [[1, 32, 32, 576]]    [1, 32, 32, 576]          0             Dropout-3        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0             Linear-8         [[1, 32, 32, 576]]    [1, 32, 32, 192]       110,784            Mlp-2          [[1, 32, 32, 192]]    [1, 32, 32, 192]          0         PermutatorBlock-1    [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            LayerNorm-3       [[1, 32, 32, 192]]    [1, 32, 32, 192]         384            Linear-10        [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-11        [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-9         [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-12            [[1, 192]]            [1, 48]             9,264            GELU-3              [[1, 48]]             [1, 48]               0             Dropout-4            [[1, 576]]            [1, 576]              0             Linear-13            [[1, 48]]             [1, 576]           28,224             Mlp-3              [[1, 192]]            [1, 576]              0             Linear-14        [[1, 32, 32, 192]]    [1, 32, 32, 192]       37,056           Dropout-5        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0       WeightedPermuteMLP-2   [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            Identity-2        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            LayerNorm-4       [[1, 32, 32, 192]]    [1, 32, 32, 192]         384            Linear-15        [[1, 32, 32, 192]]    [1, 32, 32, 576]       111,168           GELU-4          [[1, 32, 32, 576]]    [1, 32, 32, 576]          0             Dropout-6        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0             Linear-16        [[1, 32, 32, 576]]    [1, 32, 32, 192]       110,784            Mlp-4          [[1, 32, 32, 192]]    [1, 32, 32, 192]          0         PermutatorBlock-2    [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            LayerNorm-5       [[1, 32, 32, 192]]    [1, 32, 32, 192]         384            Linear-18        [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-19        [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-17        [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-20            [[1, 192]]            [1, 48]             9,264            GELU-5              [[1, 48]]             [1, 48]               0             Dropout-7            [[1, 576]]            [1, 576]              0             Linear-21            [[1, 48]]             [1, 576]           28,224             Mlp-5              [[1, 192]]            [1, 576]              0             Linear-22        [[1, 32, 32, 192]]    [1, 32, 32, 192]       37,056           Dropout-8        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0       WeightedPermuteMLP-3   [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            Identity-3        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            LayerNorm-6       [[1, 32, 32, 192]]    [1, 32, 32, 192]         384            Linear-23        [[1, 32, 32, 192]]    [1, 32, 32, 576]       111,168           GELU-6          [[1, 32, 32, 576]]    [1, 32, 32, 576]          0             Dropout-9        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0             Linear-24        [[1, 32, 32, 576]]    [1, 32, 32, 192]       110,784            Mlp-6          [[1, 32, 32, 192]]    [1, 32, 32, 192]          0         PermutatorBlock-3    [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            LayerNorm-7       [[1, 32, 32, 192]]    [1, 32, 32, 192]         384            Linear-26        [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-27        [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-25        [[1, 32, 32, 192]]    [1, 32, 32, 192]       36,864           Linear-28            [[1, 192]]            [1, 48]             9,264            GELU-7              [[1, 48]]             [1, 48]               0            Dropout-10            [[1, 576]]            [1, 576]              0             Linear-29            [[1, 48]]             [1, 576]           28,224             Mlp-7              [[1, 192]]            [1, 576]              0             Linear-30        [[1, 32, 32, 192]]    [1, 32, 32, 192]       37,056          Dropout-11        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0       WeightedPermuteMLP-4   [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            Identity-4        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0            LayerNorm-8       [[1, 32, 32, 192]]    [1, 32, 32, 192]         384            Linear-31        [[1, 32, 32, 192]]    [1, 32, 32, 576]       111,168           GELU-8          [[1, 32, 32, 576]]    [1, 32, 32, 576]          0            Dropout-12        [[1, 32, 32, 192]]    [1, 32, 32, 192]          0             Linear-32        [[1, 32, 32, 576]]    [1, 32, 32, 192]       110,784            Mlp-8          [[1, 32, 32, 192]]    [1, 32, 32, 192]          0         PermutatorBlock-4    [[1, 32, 32, 192]]    [1, 32, 32, 192]          0             Conv2D-2         [[1, 192, 32, 32]]    [1, 384, 16, 16]       295,296        Downsample-1       [[1, 32, 32, 192]]    [1, 16, 16, 384]          0            LayerNorm-9       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-34        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-35        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-33        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-36            [[1, 384]]            [1, 96]            36,960            GELU-9              [[1, 96]]             [1, 96]               0            Dropout-13           [[1, 1152]]           [1, 1152]              0             Linear-37            [[1, 96]]            [1, 1152]           111,744            Mlp-9              [[1, 384]]           [1, 1152]              0             Linear-38        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-14        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-5   [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-5        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-10       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-39        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-10        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-15        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0             Linear-40       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-10          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0         PermutatorBlock-5    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-11       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-42        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-43        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-41        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-44            [[1, 384]]            [1, 96]            36,960            GELU-11             [[1, 96]]             [1, 96]               0            Dropout-16           [[1, 1152]]           [1, 1152]              0             Linear-45            [[1, 96]]            [1, 1152]           111,744           Mlp-11              [[1, 384]]           [1, 1152]              0             Linear-46        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-17        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-6   [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-6        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-12       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-47        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-12        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-18        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0             Linear-48       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-12          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0         PermutatorBlock-6    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-13       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-50        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-51        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-49        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-52            [[1, 384]]            [1, 96]            36,960            GELU-13             [[1, 96]]             [1, 96]               0            Dropout-19           [[1, 1152]]           [1, 1152]              0             Linear-53            [[1, 96]]            [1, 1152]           111,744           Mlp-13              [[1, 384]]           [1, 1152]              0             Linear-54        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-20        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-7   [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-7        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-14       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-55        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-14        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-21        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0             Linear-56       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-14          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0         PermutatorBlock-7    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-15       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-58        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-59        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-57        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-60            [[1, 384]]            [1, 96]            36,960            GELU-15             [[1, 96]]             [1, 96]               0            Dropout-22           [[1, 1152]]           [1, 1152]              0             Linear-61            [[1, 96]]            [1, 1152]           111,744           Mlp-15              [[1, 384]]           [1, 1152]              0             Linear-62        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-23        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-8   [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-8        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-16       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-63        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-16        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-24        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0             Linear-64       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-16          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0         PermutatorBlock-8    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-17       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-66        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-67        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-65        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-68            [[1, 384]]            [1, 96]            36,960            GELU-17             [[1, 96]]             [1, 96]               0            Dropout-25           [[1, 1152]]           [1, 1152]              0             Linear-69            [[1, 96]]            [1, 1152]           111,744           Mlp-17              [[1, 384]]           [1, 1152]              0             Linear-70        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-26        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-9   [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-9        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-18       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-71        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-18        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-27        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0             Linear-72       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-18          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0         PermutatorBlock-9    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-19       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-74        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-75        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-73        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-76            [[1, 384]]            [1, 96]            36,960            GELU-19             [[1, 96]]             [1, 96]               0            Dropout-28           [[1, 1152]]           [1, 1152]              0             Linear-77            [[1, 96]]            [1, 1152]           111,744           Mlp-19              [[1, 384]]           [1, 1152]              0             Linear-78        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-29        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-10  [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-10       [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-20       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-79        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-20        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-30        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0             Linear-80       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-20          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0        PermutatorBlock-10    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-21       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-82        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-83        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-81        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-84            [[1, 384]]            [1, 96]            36,960            GELU-21             [[1, 96]]             [1, 96]               0            Dropout-31           [[1, 1152]]           [1, 1152]              0             Linear-85            [[1, 96]]            [1, 1152]           111,744           Mlp-21              [[1, 384]]           [1, 1152]              0             Linear-86        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-32        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-11  [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-11       [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-22       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-87        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-22        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-33        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0             Linear-88       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-22          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0        PermutatorBlock-11    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-23       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-90        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-91        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-89        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-92            [[1, 384]]            [1, 96]            36,960            GELU-23             [[1, 96]]             [1, 96]               0            Dropout-34           [[1, 1152]]           [1, 1152]              0             Linear-93            [[1, 96]]            [1, 1152]           111,744           Mlp-23              [[1, 384]]           [1, 1152]              0             Linear-94        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-35        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-12  [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-12       [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-24       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-95        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-24        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-36        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0             Linear-96       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-24          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0        PermutatorBlock-12    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-25       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768            Linear-98        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-99        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456          Linear-97        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-100            [[1, 384]]            [1, 96]            36,960            GELU-25             [[1, 96]]             [1, 96]               0            Dropout-37           [[1, 1152]]           [1, 1152]              0            Linear-101            [[1, 96]]            [1, 1152]           111,744           Mlp-25              [[1, 384]]           [1, 1152]              0            Linear-102        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-38        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-13  [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-13       [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-26       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-103        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-26        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-39        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Linear-104       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-26          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0        PermutatorBlock-13    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-27       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-106        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-107        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-105        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-108            [[1, 384]]            [1, 96]            36,960            GELU-27             [[1, 96]]             [1, 96]               0            Dropout-40           [[1, 1152]]           [1, 1152]              0            Linear-109            [[1, 96]]            [1, 1152]           111,744           Mlp-27              [[1, 384]]           [1, 1152]              0            Linear-110        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-41        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-14  [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-14       [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-28       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-111        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-28        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-42        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Linear-112       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-28          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0        PermutatorBlock-14    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-29       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-114        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-115        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-113        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-116            [[1, 384]]            [1, 96]            36,960            GELU-29             [[1, 96]]             [1, 96]               0            Dropout-43           [[1, 1152]]           [1, 1152]              0            Linear-117            [[1, 96]]            [1, 1152]           111,744           Mlp-29              [[1, 384]]           [1, 1152]              0            Linear-118        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-44        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-15  [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-15       [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-30       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-119        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-30        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-45        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Linear-120       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-30          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0        PermutatorBlock-15    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-31       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-122        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-123        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-121        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-124            [[1, 384]]            [1, 96]            36,960            GELU-31             [[1, 96]]             [1, 96]               0            Dropout-46           [[1, 1152]]           [1, 1152]              0            Linear-125            [[1, 96]]            [1, 1152]           111,744           Mlp-31              [[1, 384]]           [1, 1152]              0            Linear-126        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-47        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-16  [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-16       [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-32       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-127        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-32        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-48        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Linear-128       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-32          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0        PermutatorBlock-16    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-33       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-130        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-131        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-129        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-132            [[1, 384]]            [1, 96]            36,960            GELU-33             [[1, 96]]             [1, 96]               0            Dropout-49           [[1, 1152]]           [1, 1152]              0            Linear-133            [[1, 96]]            [1, 1152]           111,744           Mlp-33              [[1, 384]]           [1, 1152]              0            Linear-134        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-50        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-17  [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-17       [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-34       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-135        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-34        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-51        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Linear-136       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-34          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0        PermutatorBlock-17    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-35       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-138        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-139        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-137        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,456         Linear-140            [[1, 384]]            [1, 96]            36,960            GELU-35             [[1, 96]]             [1, 96]               0            Dropout-52           [[1, 1152]]           [1, 1152]              0            Linear-141            [[1, 96]]            [1, 1152]           111,744           Mlp-35              [[1, 384]]           [1, 1152]              0            Linear-142        [[1, 16, 16, 384]]    [1, 16, 16, 384]       147,840         Dropout-53        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0       WeightedPermuteMLP-18  [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Identity-18       [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-36       [[1, 16, 16, 384]]    [1, 16, 16, 384]         768           Linear-143        [[1, 16, 16, 384]]   [1, 16, 16, 1152]       443,520           GELU-36        [[1, 16, 16, 1152]]   [1, 16, 16, 1152]          0            Dropout-54        [[1, 16, 16, 384]]    [1, 16, 16, 384]          0            Linear-144       [[1, 16, 16, 1152]]    [1, 16, 16, 384]       442,752           Mlp-36          [[1, 16, 16, 384]]    [1, 16, 16, 384]          0        PermutatorBlock-18    [[1, 16, 16, 384]]    [1, 16, 16, 384]          0           LayerNorm-37        [[1, 256, 384]]       [1, 256, 384]           768           Linear-145            [[1, 384]]           [1, 1000]           385,000    =================================================================================Total params: 25,114,984Trainable params: 25,114,984Non-trainable params: 0---------------------------------------------------------------------------------Input size (MB): 0.57Forward/backward pass size (MB): 319.20Params size (MB): 95.81Estimated Total Size (MB): 415.58---------------------------------------------------------------------------------

{'total_params': 25114984, 'trainable_params': 25114984}

添加预训练权重

Results on ImageNet-1K

# vip s7vip_s = vip_s7()vip_s.set_state_dict(paddle.load('/home/aistudio/data/data96765/vip_s7.pdparams'))# vip m7vip_m = vip_m7()vip_m.set_state_dict(paddle.load('/home/aistudio/data/data96765/vip_m7.pdparams'))

Cifar10 验证性能

采用Cifar10数据集，无过多的数据增强

数据准备

import paddle.vision.transforms as Tfrom paddle.vision.datasets import Cifar10paddle.set_device('gpu')#数据准备transform = T.Compose([    T.Resize(size=(224,224)),    T.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225],data_format='HWC'),    T.ToTensor()])train_dataset = Cifar10(mode='train', transform=transform)val_dataset = Cifar10(mode='test',  transform=transform)

模型准备

vip_m = vip_m7(num_classes=10)vip_m.set_state_dict(paddle.load('/home/aistudio/data/data96765/vip_m7.pdparams'))model = paddle.Model(vip_m)

开始训练

由于时间篇幅只训练5轮，感兴趣的同学可以继续训练

model.prepare(optimizer=paddle.optimizer.AdamW(learning_rate=0.0001, parameters=model.parameters()),              loss=paddle.nn.CrossEntropyLoss(),              metrics=paddle.metric.Accuracy())visualdl=paddle.callbacks.VisualDL(log_dir='visual_log')  # 开启训练可视化model.fit(    train_data=train_dataset,     eval_data=val_dataset,     batch_size=32,     epochs=5,    verbose=1,    callbacks=[visualdl] )

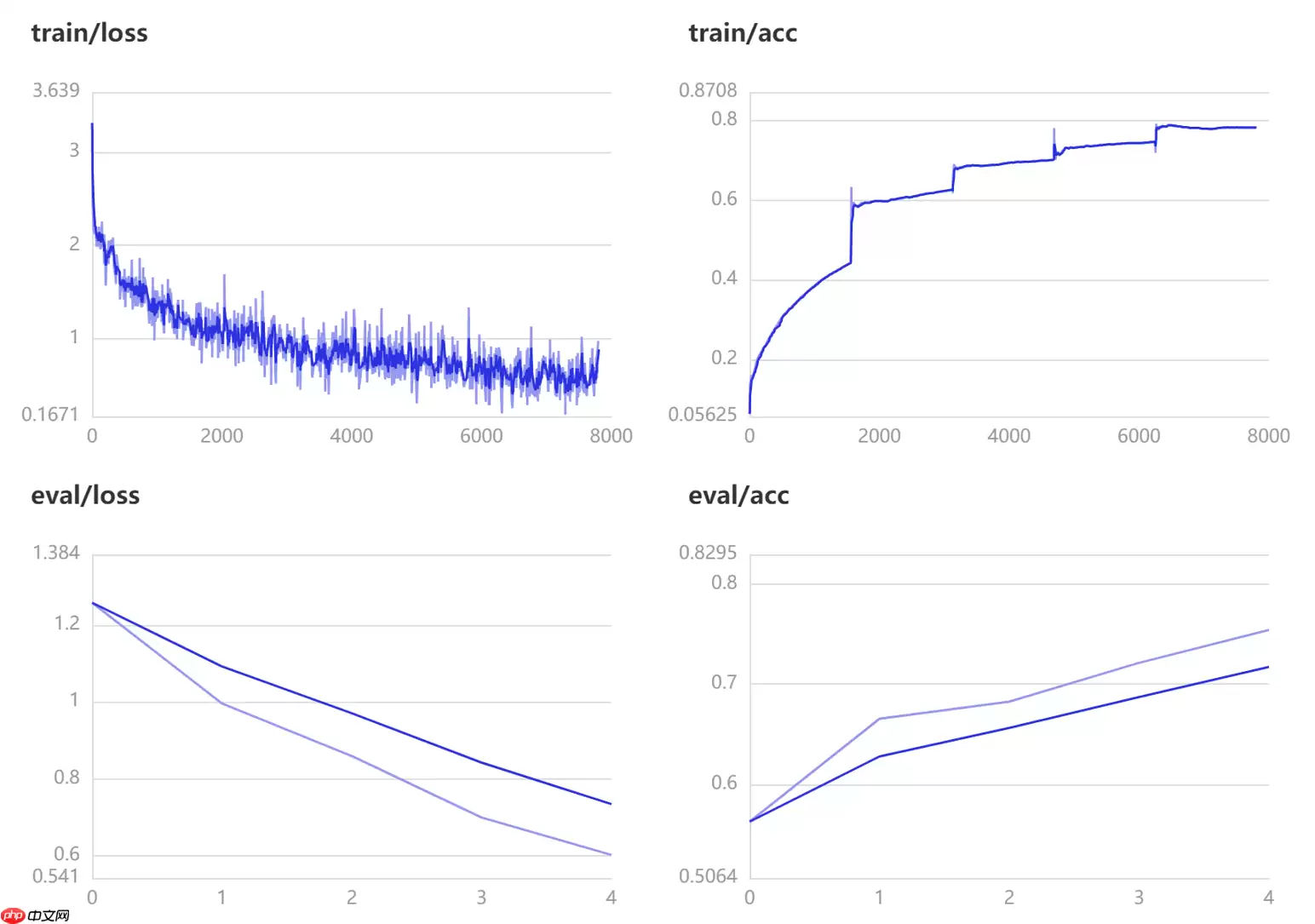

训练可视化

总结
