本文介绍CondenseNet V2模型的实现，该模型基于密集连接，针对DenseNet和CondenseNet特征复用问题，引入稀疏特征重激活，对冗余特征裁剪与更新，提升复用效率。文中给出基于Paddle的代码实现，包括各组件及预设模型，并测试了模型输出，还列出不同模型在ImageNet-1k上的精度表现。
引入
最近各种 Transformer 的视觉模型层出不穷，偶然看到一些新的 CNN 模型居然有一丝小兴奋这次就来大致实现一下 CPVR 2024 新鲜出炉的新模型 —— CondenseNet V2
相关资料
论文：CondenseNet V2: Sparse Feature Reactivation for Deep Networks最新实现：jianghaojun/CondenseNetV2参考文章：CVPR2024 | 密集连接网络中的稀疏特征重激活
论文概述
本文提出了一种基于密集连接的高效轻量级神经网络。针对 DenseNet 的特征复用冗余，CondenseNet 提出利用可学习分组卷积来裁剪掉冗余连接。然而，DenseNet 的和 CondenseNet 中特征一旦产生将不再发生任何更改，这就导致了部分特征的潜在价值被严重忽略。本文提出：与其直接删掉冗余，不妨给冗余特征一个“翻身”机会。因此我们提出一种可学习的稀疏特征重激活的方法，来有选择地更新冗余特征，从而增强特征的复用效率。CondenseNet V2 在 CondenseNet 的基础上引入了稀疏特征重激活，对冗余特征同时进行了裁剪和更新，有效提升了密集连接网络的特征复用效率，在图像分类和检测任务上取得的出色表现。更多详情请看上面的参考文章的内容
代码实现

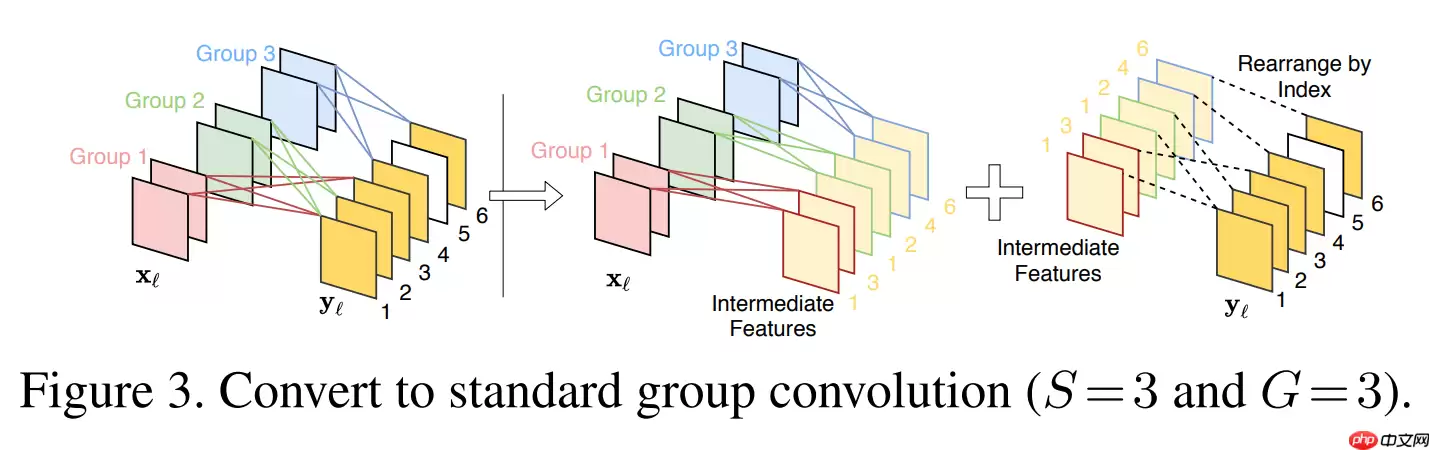

最新实现只提供了转换后的标准分组卷积的模型参数，大致的转换流程如下图：
所以为了兼容这些模型参数，代码也是转换后的模型代码，适合于微调使用完整的模型训练代码之后应该会再更新的In [1]
!pip install ppim
登录后复制In [2]
import paddleimport paddle.nn as nnimport paddle.vision.transforms as Tfrom ppim.models.common import kaiming_normal_, zeros_, ones_class SELayer(nn.Layer): def __init__(self, inplanes, reduction=16): super(SELayer, self).__init__() self.avg_pool = nn.AdaptiveAvgPool2D(1) self.fc = nn.Sequential( nn.Linear(inplanes, inplanes // reduction, bias_attr=False), nn.ReLU(), nn.Linear(inplanes // reduction, inplanes, bias_attr=False), nn.Sigmoid() ) def forward(self, x): b, c, _, _ = x.shape y = self.avg_pool(x).reshape((b, c)) y = self.fc(y).reshape((b, c, 1, 1)) return x * y.expand_as(x)class HS(nn.Layer): def __init__(self): super(HS, self).__init__() self.relu6 = nn.ReLU6() def forward(self, inputs): return inputs * self.relu6(inputs + 3) / 6class Conv(nn.Sequential): def __init__(self, in_channels, out_channels, kernel_size, stride=1, padding=0, groups=1, activation='ReLU', bn_momentum=0.9): super(Conv, self).__init__() self.add_sublayer('norm', nn.BatchNorm2D( in_channels, momentum=bn_momentum)) if activation == 'ReLU': self.add_sublayer('activation', nn.ReLU()) elif activation == 'HS': self.add_sublayer('activation', HS()) else: raise NotImplementedError self.add_sublayer('conv', nn.Conv2D(in_channels, out_channels, kernel_size=kernel_size, stride=stride, padding=padding, bias_attr=False, groups=groups))def ShuffleLayer(x, groups): batchsize, num_channels, height, width = x.shape channels_per_group = num_channels // groups # reshape x = x.reshape((batchsize, groups, channels_per_group, height, width)) # transpose x = x.transpose((0, 2, 1, 3, 4)) # reshape x = x.reshape((batchsize, -1, height, width)) return xdef ShuffleLayerTrans(x, groups): batchsize, num_channels, height, width = x.shape channels_per_group = num_channels // groups # reshape x = x.reshape((batchsize, channels_per_group, groups, height, width)) # transpose x = x.transpose((0, 2, 1, 3, 4)) # reshape x = x.reshape((batchsize, -1, height, width)) return xclass CondenseLGC(nn.Layer): def __init__(self, in_channels, out_channels, kernel_size, stride=1, padding=0, groups=1, activation='ReLU'): super(CondenseLGC, self).__init__() self.in_channels = in_channels self.out_channels = out_channels self.groups = groups self.norm = nn.BatchNorm2D(self.in_channels) if activation == 'ReLU': self.activation = nn.ReLU() elif activation == 'HS': self.activation = HS() else: raise NotImplementedError self.conv = nn.Conv2D(self.in_channels, self.out_channels, kernel_size=kernel_size, stride=stride, padding=padding, groups=self.groups, bias_attr=False) self.register_buffer('index', paddle.zeros( (self.in_channels,), dtype='int64')) def forward(self, x): x = paddle.index_select(x, self.index, axis=1) x = self.norm(x) x = self.activation(x) x = self.conv(x) x = ShuffleLayer(x, self.groups) return xclass CondenseSFR(nn.Layer): def __init__(self, in_channels, out_channels, kernel_size, stride=1, padding=0, groups=1, activation='ReLU'): super(CondenseSFR, self).__init__() self.in_channels = in_channels self.out_channels = out_channels self.groups = groups self.norm = nn.BatchNorm2D(self.in_channels) if activation == 'ReLU': self.activation = nn.ReLU() elif activation == 'HS': self.activation = HS() else: raise NotImplementedError self.conv = nn.Conv2D(self.in_channels, self.out_channels, kernel_size=kernel_size, padding=padding, groups=self.groups, bias_attr=False, stride=stride) self.register_buffer('index', paddle.zeros( (self.out_channels, self.out_channels))) def forward(self, x): x = self.norm(x) x = self.activation(x) x = ShuffleLayerTrans(x, self.groups) x = self.conv(x) # SIZE: N, C, H, W N, C, H, W = x.shape x = x.reshape((N, C, H * W)) x = x.transpose((0, 2, 1)) # SIZE: N, HW, C # x SIZE: N, HW, C; self.index SIZE: C, C; OUTPUT SIZE: N, HW, C x = paddle.matmul(x, self.index) x = x.transpose((0, 2, 1)) # SIZE: N, C, HW x = x.reshape((N, C, H, W)) # SIZE: N, C, HW return xclass _SFR_DenseLayer(nn.Layer): def __init__(self, in_channels, growth_rate, group_1x1, group_3x3, group_trans, bottleneck, activation, use_se=False): super(_SFR_DenseLayer, self).__init__() self.group_1x1 = group_1x1 self.group_3x3 = group_3x3 self.group_trans = group_trans self.use_se = use_se # 1x1 conv i --> b*k self.conv_1 = CondenseLGC(in_channels, bottleneck * growth_rate, kernel_size=1, groups=self.group_1x1, activation=activation) # 3x3 conv b*k --> k self.conv_2 = Conv(bottleneck * growth_rate, growth_rate, kernel_size=3, padding=1, groups=self.group_3x3, activation=activation) # 1x1 res conv k(8-16-32)--> i (k*l) self.sfr = CondenseSFR(growth_rate, in_channels, kernel_size=1, groups=self.group_trans, activation=activation) if self.use_se: self.se = SELayer(inplanes=growth_rate, reduction=1) def forward(self, x): x_ = x x = self.conv_1(x) x = self.conv_2(x) if self.use_se: x = self.se(x) sfr_feature = self.sfr(x) y = x_ + sfr_feature return paddle.concat([y, x], 1)class _SFR_DenseBlock(nn.Sequential): def __init__(self, num_layers, in_channels, growth_rate, group_1x1, group_3x3, group_trans, bottleneck, activation, use_se): super(_SFR_DenseBlock, self).__init__() for i in range(num_layers): layer = _SFR_DenseLayer( in_channels + i * growth_rate, growth_rate, group_1x1, group_3x3, group_trans, bottleneck, activation, use_se) self.add_sublayer('denselayer_%d' % (i + 1), layer)class _Transition(nn.Layer): def __init__(self): super(_Transition, self).__init__() self.pool = nn.AvgPool2D(kernel_size=2, stride=2) def forward(self, x): x = self.pool(x) return xclass CondenseNetV2(nn.Layer): def __init__(self, stages, growth, HS_start_block, SE_start_block, fc_channel, group_1x1, group_3x3, group_trans, bottleneck, last_se_reduction, class_dim=1000): super(CondenseNetV2, self).__init__() self.stages = stages self.growth = growth self.class_dim = class_dim self.last_se_reduction = last_se_reduction assert len(self.stages) == len(self.growth) self.progress = 0.0 self.init_stride = 2 self.pool_size = 7 self.features = nn.Sequential() # Initial nChannels should be 3 self.num_features = 2 * self.growth[0] # Dense-block 1 (224x224) self.features.add_sublayer('init_conv', nn.Conv2D(3, self.num_features, kernel_size=3, stride=self.init_stride, padding=1, bias_attr=False)) for i in range(len(self.stages)): activation = 'HS' if i >= HS_start_block else 'ReLU' use_se = True if i >= SE_start_block else False # Dense-block i self.add_block(i, group_1x1, group_3x3, group_trans, bottleneck, activation, use_se) self.fc = nn.Linear(self.num_features, fc_channel) self.fc_act = HS() # Classifier layer if class_dim > 0: self.classifier = nn.Linear(fc_channel, class_dim) self._initialize() def add_block(self, i, group_1x1, group_3x3, group_trans, bottleneck, activation, use_se): # Check if ith is the last one last = (i == len(self.stages) - 1) block = _SFR_DenseBlock( num_layers=self.stages[i], in_channels=self.num_features, growth_rate=self.growth[i], group_1x1=group_1x1, group_3x3=group_3x3, group_trans=group_trans, bottleneck=bottleneck, activation=activation, use_se=use_se, ) self.features.add_sublayer('denseblock_%d' % (i + 1), block) self.num_features += self.stages[i] * self.growth[i] if not last: trans = _Transition() self.features.add_sublayer('transition_%d' % (i + 1), trans) else: self.features.add_sublayer('norm_last', nn.BatchNorm2D(self.num_features)) self.features.add_sublayer('relu_last', nn.ReLU()) self.features.add_sublayer('pool_last', nn.AvgPool2D(self.pool_size)) # if useSE: self.features.add_sublayer('se_last', SELayer(self.num_features, reduction=self.last_se_reduction)) def forward(self, x): features = self.features(x) out = features.reshape((features.shape[0], -1)) out = self.fc(out) out = self.fc_act(out) if self.class_dim > 0: out = self.classifier(out) return out def _initialize(self): # initialize for m in self.sublayers(): if isinstance(m, nn.Conv2D): kaiming_normal_(m.weight) elif isinstance(m, nn.BatchNorm2D): ones_(m.weight) zeros_(m.bias)登录后复制
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/fluid/layers/utils.py:26: DeprecationWarning: `np.int` is a deprecated alias for the builtin `int`. To silence this warning, use `int` by itself. Doing this will not modify any behavior and is safe. When replacing `np.int`, you may wish to use e.g. `np.int64` or `np.int32` to specify the precision. If you wish to review your current use, check the release note link for additional information.Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations def convert_to_list(value, n, name, dtype=np.int):
登录后复制
预设模型
In [3]
def cdnv2_a(pretrained=False, **kwargs): model = CondenseNetV2( stages=[1, 1, 4, 6, 8], growth=[8, 8, 16, 32, 64], HS_start_block=2, SE_start_block=3, fc_channel=828, group_1x1=8, group_3x3=8, group_trans=8, bottleneck=4, last_se_reduction=16, **kwargs ) if pretrained: params = paddle.load('data/data80680/cdnv2_a.pdparams') model.set_dict(params) return modeldef cdnv2_b(pretrained=False, **kwargs): model = CondenseNetV2( stages=[2, 4, 6, 8, 6], growth=[6, 12, 24, 48, 96], HS_start_block=2, SE_start_block=3, fc_channel=1024, group_1x1=6, group_3x3=6, group_trans=6, bottleneck=4, last_se_reduction=16, **kwargs ) if pretrained: params = paddle.load('data/data80680/cdnv2_b.pdparams') model.set_dict(params) return modeldef cdnv2_c(pretrained=False, **kwargs): model = CondenseNetV2( stages=[4, 6, 8, 10, 8], growth=[8, 16, 32, 64, 128], HS_start_block=2, SE_start_block=3, fc_channel=1024, group_1x1=8, group_3x3=8, group_trans=8, bottleneck=4, last_se_reduction=16, **kwargs ) if pretrained: params = paddle.load('data/data80680/cdnv2_c.pdparams') model.set_dict(params) return model登录后复制
模型测试
In [5]
model = cdnv2_a()out = model(paddle.randn((1, 3, 224, 224)))print(out.shape)model.eval()out = model(paddle.randn((1, 3, 224, 224)))print(out.shape)
登录后复制
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/paddle/nn/layer/norm.py:648: UserWarning: When training, we now always track global mean and variance. "When training, we now always track global mean and variance.")
登录后复制
[1, 1000][1, 1000]
登录后复制
精度表现
具体的模型精度表现如下（ImageNet-1k）：
