ShiftViT：采用简单高效的移位操作证明Attention是否必要

摘要

        注意力机制被广泛认为是视觉Transformer成功的关键，因为它提供了一种灵活而强大的方式来建模空间关系。然而，注意力机制真的是ViT不可或缺的一部分吗?它能被其他替代品取代吗?为了揭开注意力机制的神秘面纱，我们将其简化为一个极其简单的例子:ZERO FLOP和ZERO parameter。具体来说，我们要重新审视Shift操作。它不包含任何参数或算术计算。唯一的操作是在相邻特性之间交换一小部分通道。基于这个简单的操作，我们构建了一个新的骨干网络，即ShiftViT，其中的注意层被Shift操作所取代。令人惊讶的是，ShiftViT在几个主流任务中工作得相当好，例如，分类，检测和分割。性能与强大的基线Swin Transformer相当，甚至更好。这些结果表明，注意力机制可能不是使ViT成功的关键因素。它甚至可以被零参数操作取代。在今后的工作中，我们应该更多地关注ViT的剩余部分。

免费影视、动漫、音乐、游戏、小说资源长期稳定更新！ 👉 点此立即查看 👈

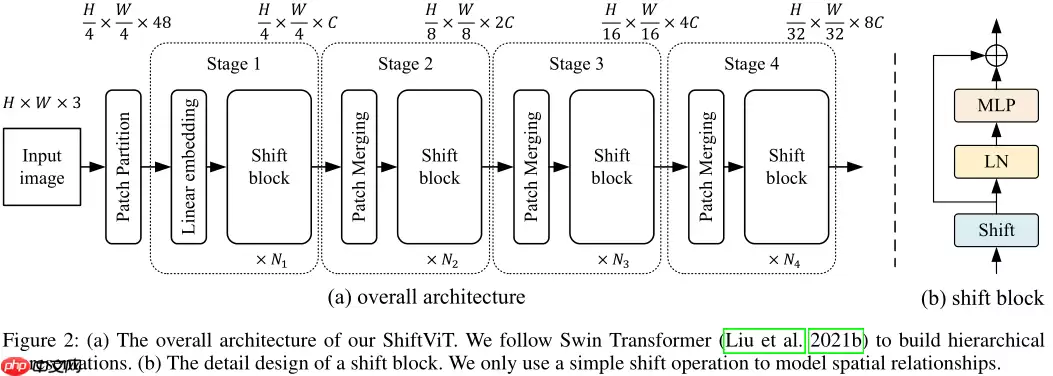

1. ShiftViT

        为验证Transformer中的Attention机制是否是必要的，ShiftViT采用一个简单高效的Shift操作来代替Attention机制，Shift操作是沿上下左右对Shift部分进行偏移操作（与S2MLP特别相似，不同的是S2MLP将所有都采用Shift操作，而ShiftViT仅对一部分使用Shift操作）：

z^[0:H,1:W,0:γC]←z[0:H,0:W−1,0:γC]z^[0:H,0:W−1,γC:2γC]←z[0:H,1:W,γC:2γC]z^[0:H−1,0:W,2γC:3γC]←z[1:H,0:W,2γC:3γC]z^[1:H,0:W,3γC:4γC]←z[0:H−1,0:W,3γC:4γC]z^[0:H,0:W,4γC:C]←z[0:H,0:W,4γC:C]z^[0:H,1:W,0:γC]z^[0:H,0:W−1,γC:2γC]z^[0:H−1,0:W,2γC:3γC]z^[1:H,0:W,3γC:4γC]z^[0:H,0:W,4γC:C]←z[0:H,0:W−1,0:γC]←z[0:H,1:W,γC:2γC]←z[1:H,0:W,2γC:3γC]←z[0:H−1,0:W,3γC:4γC]←z[0:H,0:W,4γC:C]

2. 代码复现

2.1 下载并导入所需的库

In [ ]

!pip install einops-0.3.0-py3-none-any.whl

登录后复制In [ ]

%matplotlib inlineimport paddleimport numpy as npimport matplotlib.pyplot as pltfrom paddle.vision.datasets import Cifar10from paddle.vision.transforms import Transposefrom paddle.io import Dataset, DataLoaderfrom paddle import nnimport paddle.nn.functional as Fimport paddle.vision.transforms as transformsimport osimport matplotlib.pyplot as pltfrom matplotlib.pyplot import figurefrom einops.layers.paddle import Rearrange, Reducefrom einops import rearrange

登录后复制

2.2 创建数据集

In [16]

train_tfm = transforms.Compose([    transforms.Resize((230, 230)),    transforms.ColorJitter(brightness=0.2,contrast=0.2, saturation=0.2),    transforms.RandomResizedCrop(224, scale=(0.6, 1.0)),    transforms.RandomHorizontalFlip(0.5),    transforms.RandomRotation(20),    transforms.ToTensor(),    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),])test_tfm = transforms.Compose([    transforms.Resize((224, 224)),    transforms.ToTensor(),    transforms.Normalize(mean=(0.485, 0.456, 0.406), std=(0.229, 0.224, 0.225)),])

登录后复制In [17]

paddle.vision.set_image_backend('cv2')# 使用Cifar10数据集train_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='train', transform = train_tfm, )val_dataset = Cifar10(data_file='data/data152754/cifar-10-python.tar.gz', mode='test',transform = test_tfm)print("train_dataset: %d" % len(train_dataset))print("val_dataset: %d" % len(val_dataset))

登录后复制

train_dataset: 50000val_dataset: 10000

登录后复制In [18]

batch_size=128

登录后复制In [19]

train_loader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True, drop_last=True, num_workers=4)val_loader = DataLoader(val_dataset, batch_size=batch_size, shuffle=False, drop_last=False, num_workers=4)

登录后复制

2.3 模型的创建

2.3.1 标签平滑

In [8]

class LabelSmoothingCrossEntropy(nn.Layer):    def __init__(self, smoothing=0.1):        super().__init__()        self.smoothing = smoothing    def forward(self, pred, target):        confidence = 1. - self.smoothing        log_probs = F.log_softmax(pred, axis=-1)        idx = paddle.stack([paddle.arange(log_probs.shape[0]), target], axis=1)        nll_loss = paddle.gather_nd(-log_probs, index=idx)        smooth_loss = paddle.mean(-log_probs, axis=-1)        loss = confidence * nll_loss + self.smoothing * smooth_loss        return loss.mean()

登录后复制

2.3.2 DropPath

In [8]

def drop_path(x, drop_prob=0.0, training=False):    """    Drop paths (Stochastic Depth) per sample (when applied in main path of residual blocks).    the original name is misleading as 'Drop Connect' is a different form of dropout in a separate paper...    See discussion: https://github.com/tensorflow/tpu/issues/494#issuecomment-532968956 ...    """    if drop_prob == 0.0 or not training:        return x    keep_prob = paddle.to_tensor(1 - drop_prob)    shape = (paddle.shape(x)[0],) + (1,) * (x.ndim - 1)    random_tensor = keep_prob + paddle.rand(shape, dtype=x.dtype)    random_tensor = paddle.floor(random_tensor)  # binarize    output = x.divide(keep_prob) * random_tensor    return outputclass DropPath(nn.Layer):    def __init__(self, drop_prob=None):        super(DropPath, self).__init__()        self.drop_prob = drop_prob    def forward(self, x):        return drop_path(x, self.drop_prob, self.training)

登录后复制

2.3.3 ShiftViT模型的创建

In [9]

class MLP(nn.Layer):    def __init__(self, in_features, hidden_features=None, out_features=None,act_layer=nn.GELU, drop=0.):        super().__init__()        out_features = out_features or in_features        hidden_features = hidden_features or in_features        self.fc1 = nn.Conv2D(in_features, hidden_features, 1)        self.act = act_layer()        self.fc2 = nn.Conv2D(hidden_features, out_features, 1)        self.drop = nn.Dropout(drop)    def forward(self, x):        x = self.fc1(x)        x = self.act(x)        x = self.drop(x)        x = self.fc2(x)        x = self.drop(x)        return x

登录后复制In [10]

class Shift(nn.Layer):    def __init__(self, n_div):        super().__init__()        self.n_div = n_div    def forward(self, x):        B, C, H, W = x.shape        g = C // self.n_div        # out = paddle.zeros_like(x)        x[:, g * 0:g * 1, :, :-1] = x[:, g * 0:g * 1, :, 1:]  # shift left        x[:, g * 1:g * 2, :, 1:] = x[:, g * 1:g * 2, :, :-1]  # shift right        x[:, g * 2:g * 3, :-1, :] = x[:, g * 2:g * 3, 1:, :]  # shift up        x[:, g * 3:g * 4, 1:, :] = x[:, g * 3:g * 4, :-1, :]  # shift down        x[:, g * 4:, :, :] = x[:, g * 4:, :, :]  # no shift        return x

登录后复制In [11]

class ShiftViTBlock(nn.Layer):    def __init__(self, dim, n_div=12, mlp_ratio=4., drop=0., drop_path=0., act_layer=nn.GELU, norm_layer=nn.LayerNorm,                input_resolution=None):        super().__init__()        self.input_resolution = input_resolution        self.mlp_ratio = mlp_ratio        self.drop_path = DropPath(drop_path) if drop_path > 0. else nn.Identity()        self.norm = norm_layer(dim)        mlp_hidden_dim = int(dim * mlp_ratio)        self.mlp = MLP(in_features=dim,                       hidden_features=mlp_hidden_dim,                       act_layer=act_layer,                       drop=drop)        self.n_div = n_div        self.shift = Shift(n_div)    def forward(self, x):        x = self.shift(x)        shortcut = x        x = shortcut + self.drop_path(self.mlp(self.norm(x.transpose([0, 2, 3, 1])).transpose([0, 3, 1, 2])))        return x

登录后复制In [12]

class BasicLayer(nn.Layer):    def __init__(self, dim, input_resolution, depth, n_div=12, mlp_ratio=4., drop=0., drop_path=None, norm_layer=None, downsample=True,                act_layer=nn.GELU):        super(BasicLayer, self).__init__()        self.dim = dim        self.input_resolution = input_resolution        self.depth = depth        # build blocks        self.blocks = nn.LayerList([            ShiftViTBlock(dim=dim,                          n_div=n_div,                          mlp_ratio=mlp_ratio,                          drop=drop,                          drop_path=drop_path[i],                          norm_layer=norm_layer,                          act_layer=act_layer,                          input_resolution=input_resolution)            for i in range(depth)        ])        # patch merging layer        if downsample:            self.downsample = nn.Sequential(                nn.GroupNorm(num_groups=1, num_channels=dim),                nn.Conv2D(dim, dim * 2, kernel_size=2, stride=2,bias_attr=False)            )        else:            self.downsample = None    def forward(self, x):        for blk in self.blocks:            x = blk(x)        if self.downsample is not None:            x = self.downsample(x)        return x

登录后复制In [13]

class ShiftViT(nn.Layer):    def __init__(self,n_div=12, img_size=224, patch_size=4, in_chans=3, num_classes=1000, embed_dim=96, depths=(2, 2, 6, 2), mlp_ratio=2.,                drop_rate=0., drop_path_rate=0.1, patch_norm=True, **kwargs):        super().__init__()        norm_layer = nn.LayerNorm        act_layer = nn.GELU        self.num_classes = num_classes        self.num_layers = len(depths)        self.embed_dim = embed_dim        self.patch_norm = patch_norm        self.num_features = int(embed_dim * 2 ** (self.num_layers - 1))        self.mlp_ratio = mlp_ratio        # split image into non-overlapping patches        self.patch_embed = nn.Sequential(            nn.Conv2D(in_chans, embed_dim, kernel_size=patch_size, stride=patch_size),            Rearrange('b c h w->b h w c'),            nn.LayerNorm(embed_dim) if self.patch_norm else nn.Identity(),            Rearrange('b h w c->b c h w')        )        # num_patches = self.patch_embed.num_patches        patches_resolution = [img_size // patch_size, img_size // patch_size]        self.patches_resolution = patches_resolution        self.pos_drop = nn.Dropout(p=drop_rate)        # stochastic depth decay rule        dpr = [x.item()               for x in paddle.linspace(0, drop_path_rate, sum(depths))]        # build layers        self.layers = nn.LayerList()        for i_layer in range(self.num_layers):            layer = BasicLayer(dim=int(embed_dim * 2 ** i_layer),                               n_div=n_div,                               input_resolution=(patches_resolution[0] // (2 ** i_layer),                                                 patches_resolution[1] // (2 ** i_layer)),                               depth=depths[i_layer],                               mlp_ratio=self.mlp_ratio,                               drop=drop_rate,                               drop_path=dpr[sum(depths[:i_layer]):sum(depths[:i_layer + 1])],                               norm_layer=norm_layer,                               downsample=(i_layer < self.num_layers - 1),                               act_layer=act_layer)            self.layers.append(layer)        self.norm = norm_layer(self.num_features)        self.avgpool = nn.AdaptiveAvgPool2D(1)        self.head = nn.Linear(self.num_features, num_classes) \            if num_classes > 0 else nn.Identity()        self.apply(self._init_weights)    def _init_weights(self, m):        tn = nn.initializer.TruncatedNormal(std=.02)        zeros = nn.initializer.Constant(0.)        ones = nn.initializer.Constant(1.)        if isinstance(m, nn.Linear):            tn(m.weight)            if isinstance(m, nn.Linear) and m.bias is not None:                zeros(m.bias)        elif isinstance(m, (nn.Conv1D, nn.Conv2D)):            tn(m.weight)            if m.bias is not None:                zeros(m.bias)        elif isinstance(m, (nn.LayerNorm, nn.GroupNorm)):            zeros(m.bias)            ones(m.weight)    def forward_features(self, x):        x = self.patch_embed(x)        x = self.pos_drop(x)        for layer in self.layers:            x = layer(x)        x = self.norm(x.transpose([0, 2, 3, 1])).transpose([0, 3, 1, 2])         x = self.avgpool(x)         x = paddle.flatten(x, 1)        return x    def forward(self, x):        x = self.forward_features(x)        x = self.head(x)        return x

登录后复制

2.3.4 模型的参数

In [ ]

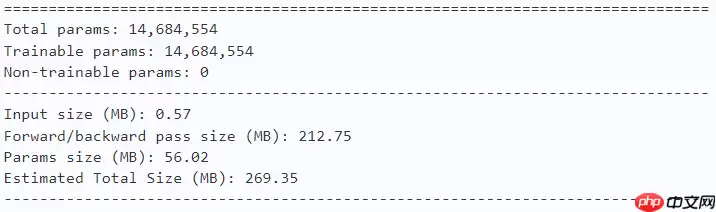

# Shift-Tmodel = ShiftViT(n_div=12, embed_dim=96, depths=(6, 8, 18, 6), num_classes=10)paddle.summary(model, (1, 3, 224, 224))

登录后复制

In [ ]

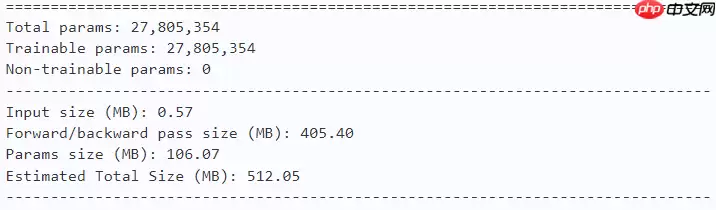

# Shift-Smodel = ShiftViT(n_div=12, embed_dim=96, depths=(10, 18, 36, 10), num_classes=10)paddle.summary(model, (1, 3, 224, 224))

登录后复制

In [ ]

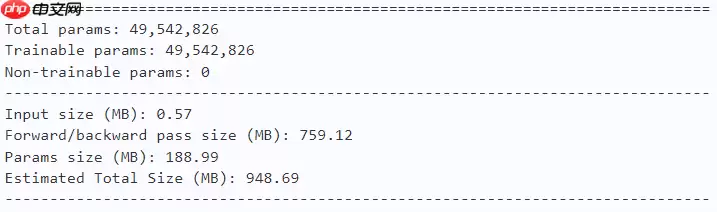

# Shift-Bmodel = ShiftViT(n_div=16, embed_dim=128, depths=(10, 18, 36, 10), num_classes=10)paddle.summary(model, (1, 3, 224, 224))

登录后复制

In [ ]

# Shift-oursmodel = ShiftViT(n_div=12, embed_dim=96, depths=(3, 4, 9, 3), num_classes=10)paddle.summary(model, (1, 3, 224, 224))

登录后复制

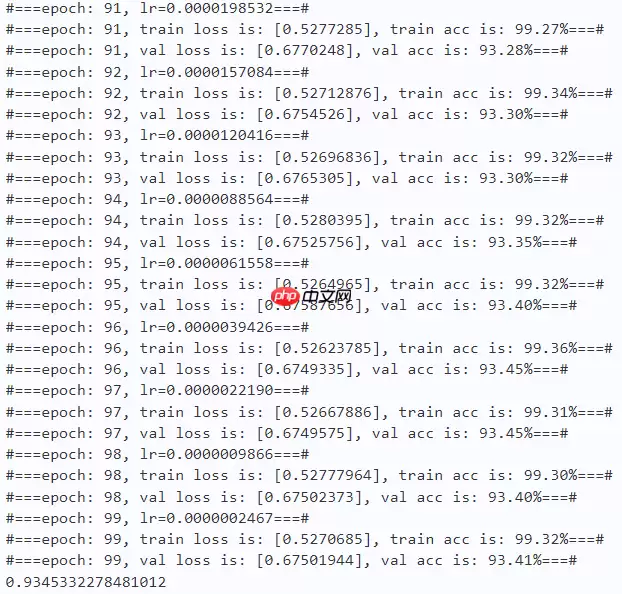

2.4 训练

In [19]

learning_rate = 0.001n_epochs = 100paddle.seed(42)np.random.seed(42)

登录后复制In [ ]

work_path = 'work/model'# Shift-oursmodel = ShiftViT(n_div=12, embed_dim=96, depths=(3, 4, 9, 3), num_classes=10)criterion = LabelSmoothingCrossEntropy()scheduler = paddle.optimizer.lr.CosineAnnealingDecay(learning_rate=learning_rate, T_max=50000 // batch_size * n_epochs, verbose=False)optimizer = paddle.optimizer.Adam(parameters=model.parameters(), learning_rate=scheduler, weight_decay=1e-5)gate = 0.0threshold = 0.0best_acc = 0.0val_acc = 0.0loss_record = {'train': {'loss': [], 'iter': []}, 'val': {'loss': [], 'iter': []}}   # for recording lossacc_record = {'train': {'acc': [], 'iter': []}, 'val': {'acc': [], 'iter': []}}      # for recording accuracyloss_iter = 0acc_iter = 0for epoch in range(n_epochs):    # ---------- Training ----------    model.train()    train_num = 0.0    train_loss = 0.0    val_num = 0.0    val_loss = 0.0    accuracy_manager = paddle.metric.Accuracy()    val_accuracy_manager = paddle.metric.Accuracy()    print("#===epoch: {}, lr={:.10f}===#".format(epoch, optimizer.get_lr()))    for batch_id, data in enumerate(train_loader):        x_data, y_data = data        labels = paddle.unsqueeze(y_data, axis=1)        logits = model(x_data)        loss = criterion(logits, y_data)        acc = accuracy_manager.compute(logits, labels)        accuracy_manager.update(acc)        if batch_id % 10 == 0:            loss_record['train']['loss'].append(loss.numpy())            loss_record['train']['iter'].append(loss_iter)            loss_iter += 1        loss.backward()        optimizer.step()        scheduler.step()        optimizer.clear_grad()                train_loss += loss        train_num += len(y_data)    total_train_loss = (train_loss / train_num) * batch_size    train_acc = accuracy_manager.accumulate()    acc_record['train']['acc'].append(train_acc)    acc_record['train']['iter'].append(acc_iter)    acc_iter += 1    # Print the information.    print("#===epoch: {}, train loss is: {}, train acc is: {:2.2f}%===#".format(epoch, total_train_loss.numpy(), train_acc*100))    # ---------- Validation ----------    model.eval()    for batch_id, data in enumerate(val_loader):        x_data, y_data = data        labels = paddle.unsqueeze(y_data, axis=1)        with paddle.no_grad():          logits = model(x_data)        loss = criterion(logits, y_data)        acc = val_accuracy_manager.compute(logits, labels)        val_accuracy_manager.update(acc)        val_loss += loss        val_num += len(y_data)    total_val_loss = (val_loss / val_num) * batch_size    loss_record['val']['loss'].append(total_val_loss.numpy())    loss_record['val']['iter'].append(loss_iter)    val_acc = val_accuracy_manager.accumulate()    acc_record['val']['acc'].append(val_acc)    acc_record['val']['iter'].append(acc_iter)        print("#===epoch: {}, val loss is: {}, val acc is: {:2.2f}%===#".format(epoch, total_val_loss.numpy(), val_acc*100))    # ===================save====================    if val_acc > best_acc:        best_acc = val_acc        paddle.save(model.state_dict(), os.path.join(work_path, 'best_model.pdparams'))        paddle.save(optimizer.state_dict(), os.path.join(work_path, 'best_optimizer.pdopt'))print(best_acc)paddle.save(model.state_dict(), os.path.join(work_path, 'final_model.pdparams'))paddle.save(optimizer.state_dict(), os.path.join(work_path, 'final_optimizer.pdopt'))

登录后复制

2.5 结果分析

In [21]

def plot_learning_curve(record, title="loss", ylabel='CE Loss'):    ''' Plot learning curve of your CNN '''    maxtrain = max(map(float, record['train'][title]))    maxval = max(map(float, record['val'][title]))    ymax = max(maxtrain, maxval) * 1.1    mintrain = min(map(float, record['train'][title]))    minval = min(map(float, record['val'][title]))    ymin = min(mintrain, minval) * 0.9    total_steps = len(record['train'][title])    x_1 = list(map(int, record['train']['iter']))    x_2 = list(map(int, record['val']['iter']))    figure(figsize=(10, 6))    plt.plot(x_1, record['train'][title], c='tab:red', label='train')    plt.plot(x_2, record['val'][title], c='tab:cyan', label='val')    plt.ylim(ymin, ymax)    plt.xlabel('Training steps')    plt.ylabel(ylabel)    plt.title('Learning curve of {}'.format(title))    plt.legend()    plt.show()

登录后复制

2.5.1 loss和acc曲线

In [22]

plot_learning_curve(loss_record, title="loss", ylabel='CE Loss')

登录后复制

登录后复制登录后复制In [23]

plot_learning_curve(acc_record, title="acc", ylabel='Accuracy')

登录后复制

登录后复制登录后复制In [24]

import timework_path = 'work/model'model = ShiftViT(n_div=12, embed_dim=96, depths=(3, 4, 9, 3), num_classes=10)model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))model.set_state_dict(model_state_dict)model.eval()aa = time.time()for batch_id, data in enumerate(val_loader):    x_data, y_data = data    labels = paddle.unsqueeze(y_data, axis=1)    with paddle.no_grad():        logits = model(x_data)bb = time.time()print("Throughout:{}".format(int(len(val_dataset)//(bb - aa))))

登录后复制

Throughout:794

登录后复制

2.5.2 预测与真实标签比较

In [25]

def get_cifar10_labels(labels):      """返回CIFAR10数据集的文本标签。"""    text_labels = [        'airplane', 'automobile', 'bird', 'cat', 'deer', 'dog', 'frog',        'horse', 'ship', 'truck']    return [text_labels[int(i)] for i in labels]

登录后复制In [26]

def show_images(imgs, num_rows, num_cols, pred=None, gt=None, scale=1.5):      """Plot a list of images."""    figsize = (num_cols * scale, num_rows * scale)    _, axes = plt.subplots(num_rows, num_cols, figsize=figsize)    axes = axes.flatten()    for i, (ax, img) in enumerate(zip(axes, imgs)):        if paddle.is_tensor(img):            ax.imshow(img.numpy())        else:            ax.imshow(img)        ax.axes.get_xaxis().set_visible(False)        ax.axes.get_yaxis().set_visible(False)        if pred or gt:            ax.set_title("pt: " + pred[i] + "\ngt: " + gt[i])    return axes

登录后复制In [27]

work_path = 'work/model'X, y = next(iter(DataLoader(val_dataset, batch_size=18)))model = ShiftViT(n_div=12, embed_dim=96, depths=(3, 4, 9, 3), num_classes=10)model_state_dict = paddle.load(os.path.join(work_path, 'best_model.pdparams'))model.set_state_dict(model_state_dict)model.eval()logits = model(X)y_pred = paddle.argmax(logits, -1)X = paddle.transpose(X, [0, 2, 3, 1])axes = show_images(X.reshape((18, 224, 224, 3)), 1, 18, pred=get_cifar10_labels(y_pred), gt=get_cifar10_labels(y))plt.show()

登录后复制

Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).Clipping input data to the valid range for imshow with RGB data ([0..1] for floats or [0..255] for integers).

登录后复制

登录后复制

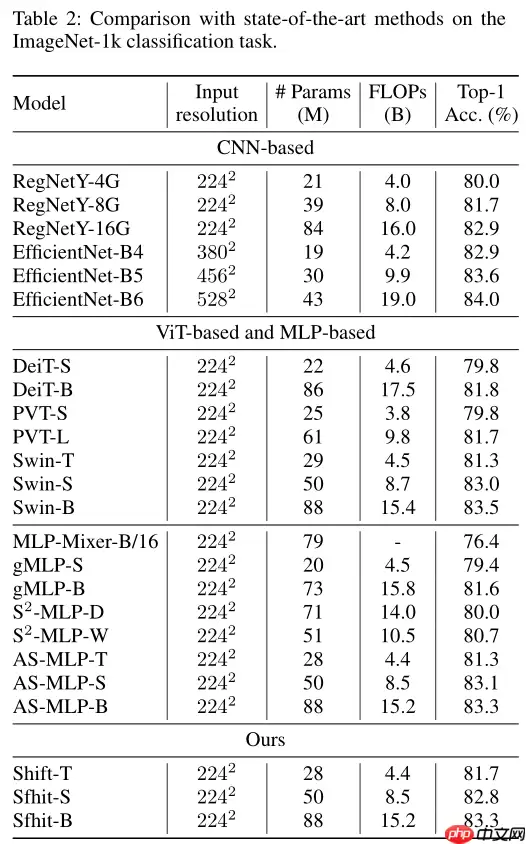

3. 对比实验

注：Swin代码来自浅析 Swin Transformer，实验结果在main-Copy2.ipynb

总结

        本文用了一个简单的Shift操作证明了Vision Transformer中的Attention不是必要的，与Swin在参数可比的情况下精度高了0.06794（小数据集如CIFAR10上ShiftViT比Swin优势明显，在大数据集上ShiftViT与Swin性能差不多）
