摘要

如果让你用一套完整的工具链，从零搭建一个智能数据分析平台，你会怎么下手？这篇文章就通过一个实际案例，拆解如何利用 OpenClaw 搞定数据采集、清洗、分析、可视化和自然语言查询。不只是讲概念，还会把系统设计和核心代码都摊开来看，帮开发者真正掌握落地方法。

1. 引言 - 数据分析平台概述

1.1 数据分析需求

企业在做数据分析时，那些老路子越来越不够用了。到底难在哪？一起来看这张对比表：

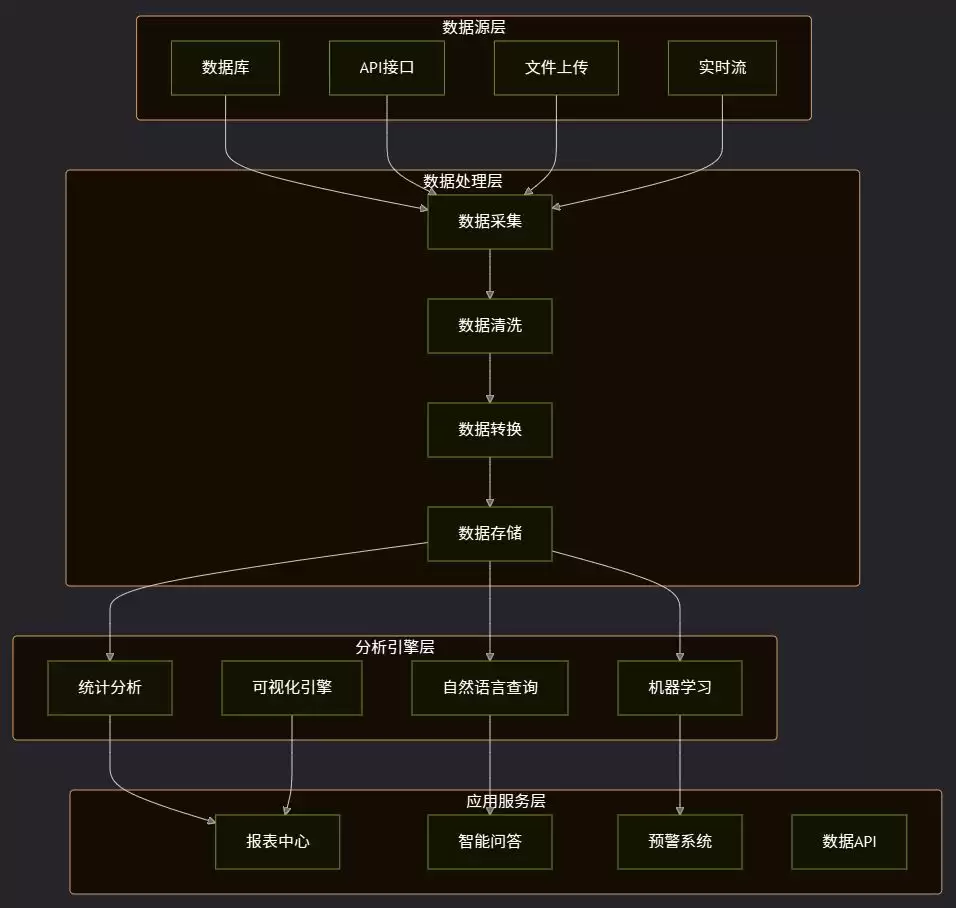

1.2 平台架构设计

1.3 核心功能规划

整个平台拆成五个核心模块，每个模块该做什么、用什么技术，一张表说清楚：

2. 数据采集模块

2.1 多源数据连接器

数据采集的第一步，就是能连上各种数据源。数据库、API、文件……每种都有不同的连接方式。这里用抽象基类 DataConnector 统一接口，然后分别实现数据库、API、文件三种连接器。以 DatabaseConnector 为例，它支持 MySQL、PostgreSQL、SQLite，通过 connect 方法建立连接，fetch 方法执行查询返回 DataFrame。API 连接器处理 REST 接口，File 连接器则支持 CSV、Excel、JSON、Parquet 等常见格式。下面是一段完整的使用示例：

from abc import ABC, abstractmethod
from typing import Dict, List, Any, Optional
from dataclasses import dataclass
import pandas as pd
@dataclass
class DataSource:
    """数据源配置"""
    name: str
    type: str
    connection: Dict[str, Any]
    schema: Optional[Dict] = None
class DataConnector(ABC):
    """数据连接器基类"""
    @abstractmethod
    def connect(self, source: DataSource) -> bool:
        """建立连接"""
        pass
    @abstractmethod
    def fetch(self, query: str) -> pd.DataFrame:
        """获取数据"""
        pass
    @abstractmethod
    def get_schema(self) -> Dict:
        """获取数据结构"""
        pass
class DatabaseConnector(DataConnector):
    """数据库连接器"""
    def __init__(self):
        self.connection = None
        self.source = None
    def connect(self, source: DataSource) -> bool:
        """建立数据库连接"""
        self.source = source
        # 根据数据库类型选择驱动
        db_type = source.type
        if db_type == "mysql":
            import pymysql
            self.connection = pymysql.connect(
                host=source.connection["host"],
                port=source.connection.get("port", 3306),
                user=source.connection["user"],
                password=source.connection["password"],
                database=source.connection["database"]
            )
        elif db_type == "postgresql":
            import psycopg2
            self.connection = psycopg2.connect(
                host=source.connection["host"],
                port=source.connection.get("port", 5432),
                user=source.connection["user"],
                password=source.connection["password"],
                database=source.connection["database"]
            )
        elif db_type == "sqlite":
            import sqlite3
            self.connection = sqlite3.connect(source.connection["path"])
        return self.connection is not None
    def fetch(self, query: str) -> pd.DataFrame:
        """执行查询并返回DataFrame"""
        if not self.connection:
            raise Exception("未建立连接")
        return pd.read_sql(query, self.connection)
    def get_schema(self) -> Dict:
        """获取数据库结构"""
        if self.source.type == "mysql":
            query = f"""
            SELECT table_name, column_name, data_type
            FROM information_schema.columns
            WHERE table_schema = '{self.source.connection["database"]}'
            """
        elif self.source.type == "postgresql":
            query = f"""
            SELECT table_name, column_name, data_type
            FROM information_schema.columns
            WHERE table_schema = 'public'
            """
        else:
            return {}
        df = self.fetch(query)
        # 构建schema字典
        schema = {}
        for _, row in df.iterrows():
            table = row["table_name"]
            if table not in schema:
                schema[table] = {"columns": []}
            schema[table]["columns"].append({
                "name": row["column_name"],
                "type": row["data_type"]
            })
        return schema
class APIConnector(DataConnector):
    """API连接器"""
    def __init__(self):
        self.source = None
        self.session = None
    def connect(self, source: DataSource) -> bool:
        """配置API连接"""
        self.source = source
        import requests
        self.session = requests.Session()
        # 设置认证
        if "api_key" in source.connection:
            self.session.headers["Authorization"] = f"Bearer {source.connection['api_key']}"
        return True
    def fetch(self, endpoint: str, params: Dict = None) -> pd.DataFrame:
        """获取API数据"""
        if not self.session:
            raise Exception("未建立连接")
        base_url = self.source.connection["base_url"]
        url = f"{base_url}/{endpoint}"
        response = self.session.get(url, params=params)
        if response.status_code == 200:
            data = response.json()
            # 处理嵌套数据
            if isinstance(data, list):
                return pd.DataFrame(data)
            elif isinstance(data, dict):
                # 尝试找到数据列表
                for key in ["data", "results", "items"]:
                    if key in data and isinstance(data[key], list):
                        return pd.DataFrame(data[key])
                return pd.DataFrame([data])
        raise Exception(f"API请求失败: {response.status_code}")
    def get_schema(self) -> Dict:
        """获取API数据结构"""
        # 通过示例数据推断结构
        return {}
class FileConnector(DataConnector):
    """文件连接器"""
    def __init__(self):
        self.source = None
        self.data = None
    def connect(self, source: DataSource) -> bool:
        """加载文件"""
        self.source = source
        file_path = source.connection["path"]
        file_type = source.connection.get("type", "csv")
        if file_type == "csv":
            self.data = pd.read_csv(file_path)
        elif file_type == "excel":
            self.data = pd.read_excel(file_path)
        elif file_type == "json":
            self.data = pd.read_json(file_path)
        elif file_type == "parquet":
            self.data = pd.read_parquet(file_path)
        else:
            return False
        return True
    def fetch(self, query: str = None) -> pd.DataFrame:
        """获取数据"""
        return self.data.copy()
    def get_schema(self) -> Dict:
        """获取数据结构"""
        if self.data is None:
            return {}
        return {
            "columns": [
                {"name": col, "type": str(self.data[col].dtype)}
                for col in self.data.columns
            ]
        }
# 使用示例
# 数据库连接
db_source = DataSource(
    name="main_db",
    type="mysql",
    connection={
        "host": "localhost",
        "user": "root",
        "password": "password",
        "database": "mydb"
    }
)
db_connector = DatabaseConnector()
db_connector.connect(db_source)
df = db_connector.fetch("SELECT * FROM users LIMIT 10")
print(f"获取 {len(df)} 条记录")
# API连接
api_source = DataSource(
    name="weather_api",
    type="api",
    connection={
        "base_url": "https://api.weather.com",
        "api_key": "your_api_key"
    }
)
api_connector = APIConnector()
api_connector.connect(api_source)
weather_df = api_connector.fetch("current", {"city": "beijing"})
print(f"天气数据: {weather_df.shape}")
# 文件连接
file_source = DataSource(
    name="sales_data",
    type="file",
    connection={
        "path": "/data/sales.csv",
        "type": "csv"
    }
)
file_connector = FileConnector()
file_connector.connect(file_source)
sales_df = file_connector.fetch()
print(f"销售数据: {sales_df.shape}")

2.2 数据采集调度器

光有连接器还不够，实际场景里数据需要定期采集，总不能每次都手动执行。这时候就需要一个调度器来管理采集任务。下面这个 DataCollectionScheduler 支持添加任务、按 cron 表达式计算下次运行时间，并在后台线程里循环执行。每个任务执行完会调用回调函数，方便把数据入库或触发后续分析。

from typing import Dict, List, Callable
from datetime import datetime, timedelta
import threading
import time
@dataclass
class CollectionTask:
    """采集任务"""
    id: str
    name: str
    connector: DataConnector
    query: str
    schedule: str  # cron表达式
    callback: Callable
    last_run: datetime = None
    next_run: datetime = None
    status: str = "pending"
class DataCollectionScheduler:
    """数据采集调度器"""
    def __init__(self):
        self.tasks: Dict[str, CollectionTask] = {}
        self.running = False
        self.thread = None
    def add_task(self, task: CollectionTask):
        """添加采集任务"""
        # 计算下次运行时间
        task.next_run = self._parse_schedule(task.schedule)
        self.tasks[task.id] = task
    def remove_task(self, task_id: str):
        """移除采集任务"""
        if task_id in self.tasks:
            del self.tasks[task_id]
    def start(self):
        """启动调度器"""
        self.running = True
        self.thread = threading.Thread(target=self._run_loop, daemon=True)
        self.thread.start()
    def stop(self):
        """停止调度器"""
        self.running = False
        if self.thread:
            self.thread.join(timeout=5)
    def _run_loop(self):
        """调度循环"""
        while self.running:
            now = datetime.now()
            for task in self.tasks.values():
                if task.next_run and now >= task.next_run:
                    self._execute_task(task)
                    task.last_run = now
                    task.next_run = self._parse_schedule(task.schedule)
            time.sleep(1)
    def _execute_task(self, task: CollectionTask):
        """执行采集任务"""
        try:
            task.status = "running"
            # 获取数据
            df = task.connector.fetch(task.query)
            # 调用回调
            task.callback(df)
            task.status = "success"
        except Exception as e:
            task.status = "failed"
            print(f"任务 {task.name} 执行失败: {e}")
    def _parse_schedule(self, schedule: str) -> datetime:
        """解析调度时间"""
        # 简化实现：支持简单格式
        # 实际应使用 croniter 库
        if schedule == "every_minute":
            return datetime.now() + timedelta(minutes=1)
        elif schedule == "every_hour":
            return datetime.now() + timedelta(hours=1)
        elif schedule == "every_day":
            return datetime.now() + timedelta(days=1)
        else:
            return datetime.now() + timedelta(hours=1)
    def get_task_status(self) -> List[Dict]:
        """获取任务状态"""
        return [
            {
                "id": task.id,
                "name": task.name,
                "status": task.status,
                "last_run": task.last_run.isoformat() if task.last_run else None,
                "next_run": task.next_run.isoformat() if task.next_run else None
            }
            for task in self.tasks.values()
        ]
# 使用示例
scheduler = DataCollectionScheduler()
def process_data(df: pd.DataFrame):
    """处理采集的数据"""
    print(f"处理 {len(df)} 条数据")
    # 存储到数据仓库
    # 或触发后续分析
# 添加采集任务
task1 = CollectionTask(
    id="task_001",
    name="用户数据采集",
    connector=db_connector,
    query="SELECT * FROM users WHERE created_at > NOW() - INTERVAL 1 HOUR",
    schedule="every_hour",
    callback=process_data
)
scheduler.add_task(task1)
scheduler.start()

3. 数据清洗模块

3.1 数据质量检测

数据采集进来后，第一件事不是急着分析，而是检查质量。脏数据会带偏所有结论。这里设计了一个 DataQualityChecker，支持灵活添加质量规则——比如非空检查、唯一性检查、范围检查、正则模式匹配。执行 check 方法后会返回质量问题列表和质量分数，同时 get_profile 方法能给出每个字段的概览统计，包括空值比例、唯一值数量、数值分布等。这样你一眼就能看出数据哪儿有问题。

from typing import Dict, List, Tuple
import numpy as np
class DataQualityChecker:
    """数据质量检测器"""
    def __init__(self):
        self.rules: List[Dict] = []
    def add_rule(self, column: str, rule_type: str, params: Dict = None):
        """添加质量规则"""
        self.rules.append({
            "column": column,
            "type": rule_type,
            "params": params or {}
        })
    def check(self, df: pd.DataFrame) -> Dict:
        """执行质量检测"""
        results = {
            "total_rows": len(df),
            "total_columns": len(df.columns),
            "issues": [],
            "score": 100
        }
        for rule in self.rules:
            column = rule["column"]
            rule_type = rule["type"]
            params = rule["params"]
            if column not in df.columns:
                results["issues"].append({
                    "column": column,
                    "type": "missing_column",
                    "message": f"列 {column} 不存在"
                })
                continue
            col_data = df[column]
            if rule_type == "not_null":
                null_count = col_data.isnull().sum()
                if null_count > 0:
                    results["issues"].append({
                        "column": column,
                        "type": "null_values",
                        "count": null_count,
                        "percentage": null_count / len(df) * 100
                    })
            elif rule_type == "unique":
                dup_count = col_data.duplicated().sum()
                if dup_count > 0:
                    results["issues"].append({
                        "column": column,
                        "type": "duplicates",
                        "count": dup_count
                    })
            elif rule_type == "range":
                min_val = params.get("min")
                max_val = params.get("max")
                if min_val is not None:
                    below_min = (col_data < min_val).sum()
                    if below_min > 0:
                        results["issues"].append({
                            "column": column,
                            "type": "below_min",
                            "count": below_min,
                            "min": min_val
                        })
                if max_val is not None:
                    above_max = (col_data > max_val).sum()
                    if above_max > 0:
                        results["issues"].append({
                            "column": column,
                            "type": "above_max",
                            "count": above_max,
                            "max": max_val
                        })
            elif rule_type == "pattern":
                pattern = params.get("pattern")
                if pattern:
                    import re
                    invalid = ~col_data.astype(str).str.match(pattern, na=False)
                    invalid_count = invalid.sum()
                    if invalid_count > 0:
                        results["issues"].append({
                            "column": column,
                            "type": "pattern_mismatch",
                            "count": invalid_count,
                            "pattern": pattern
                        })
        # 计算质量分数
        if results["issues"]:
            issue_penalty = sum(
                issue.get("percentage", 5)
                for issue in results["issues"]
            )
            results["score"] = max(0, 100 - issue_penalty)
        return results
    def get_profile(self, df: pd.DataFrame) -> Dict:
        """获取数据概要"""
        profile = {
            "row_count": len(df),
            "column_count": len(df.columns),
            "memory_usage": df.memory_usage(deep=True).sum(),
            "columns": {}
        }
        for col in df.columns:
            col_data = df[col]
            col_profile = {
                "dtype": str(col_data.dtype),
                "null_count": col_data.isnull().sum(),
                "null_percentage": col_data.isnull().sum() / len(df) * 100,
                "unique_count": col_data.nunique()
            }
            # 数值类型统计
            if col_data.dtype in ["int64", "float64"]:
                col_profile.update({
                    "min": col_data.min(),
                    "max": col_data.max(),
                    "mean": col_data.mean(),
                    "median": col_data.median(),
                    "std": col_data.std()
                })
            # 字符串类型统计
            elif col_data.dtype == "object":
                col_profile.update({
                    "min_length": col_data.astype(str).str.len().min(),
                    "max_length": col_data.astype(str).str.len().max(),
                    "a vg_length": col_data.astype(str).str.len().mean()
                })
            profile["columns"][col] = col_profile
        return profile
# 使用示例
checker = DataQualityChecker()
# 添加质量规则
checker.add_rule("user_id", "not_null")
checker.add_rule("user_id", "unique")
checker.add_rule("age", "range", {"min": 0, "max": 150})
checker.add_rule("email", "pattern", {"pattern": r"^[w.-]+@[w.-]+.w+$"})
# 执行检测
df = pd.DataFrame({
    "user_id": [1, 2, 3, None, 5],
    "age": [25, 30, -5, 40, 200],
    "email": ["a@b.com", "invalid", "c@d.com", "e@f.com", "g@h.com"]
})
results = checker.check(df)
print(f"质量分数: {results['score']}")
print(f"问题数: {len(results['issues'])}")
# 获取数据概要
profile = checker.get_profile(df)
print(f"数据概要: {profile['row_count']} 行, {profile['column_count']} 列")

3.2 数据清洗处理器

质量检测发现了问题，下一步就是修复。清洗流程通常是一连串步骤，比如去重、填充缺失、剔除异常值、标准化文本、类型转换。这里用 DataCleaner 把这些步骤串联起来，每个步骤可以自由配置参数，执行后会返回清理后的数据和一份报告，告诉你每一步删掉了多少记录。

from typing import Dict, List, Callable
class DataCleaner:
    """数据清洗处理器"""
    def __init__(self):
        self.steps: List[Dict] = []
    def add_step(self, name: str, processor: Callable, params: Dict = None):
        """添加清洗步骤"""
        self.steps.append({
            "name": name,
            "processor": processor,
            "params": params or {}
        })
    def clean(self, df: pd.DataFrame) -> Tuple[pd.DataFrame, Dict]:
        """执行清洗"""
        original_count = len(df)
        report = {
            "original_rows": original_count,
            "steps": []
        }
        result_df = df.copy()
        for step in self.steps:
            before_count = len(result_df)
            result_df = step["processor"](result_df, **step["params"])
            after_count = len(result_df)
            report["steps"].append({
                "name": step["name"],
                "rows_before": before_count,
                "rows_after": after_count,
                "rows_removed": before_count - after_count
            })
        report["final_rows"] = len(result_df)
        report["rows_removed"] = original_count - len(result_df)
        return result_df, report
# 预定义清洗处理器
def remove_duplicates(df: pd.DataFrame, subset: List[str] = None) -> pd.DataFrame:
    """去除重复"""
    return df.drop_duplicates(subset=subset)
def fill_missing(df: pd.DataFrame, columns: Dict[str, Any] = None) -> pd.DataFrame:
    """填充缺失值"""
    result = df.copy()
    for col, value in (columns or {}).items():
        if col in result.columns:
            result[col] = result[col].fillna(value)
    return result
def remove_outliers(df: pd.DataFrame, column: str, method: str = "iqr", threshold: float = 1.5) -> pd.DataFrame:
    """去除异常值"""
    if column not in df.columns:
        return df
    if method == "iqr":
        Q1 = df[column].quantile(0.25)
        Q3 = df[column].quantile(0.75)
        IQR = Q3 - Q1
        lower = Q1 - threshold * IQR
        upper = Q3 + threshold * IQR
        return df[(df[column] >= lower) & (df[column] <= upper)]
    elif method == "zscore":
        from scipy import stats
        z_scores = stats.zscore(df[column].dropna())
        return df[abs(z_scores) <= threshold]
    return df
def standardize_text(df: pd.DataFrame, column: str, lowercase: bool = True, strip: bool = True) -> pd.DataFrame:
    """标准化文本"""
    result = df.copy()
    if column in result.columns:
        if lowercase:
            result[column] = result[column].astype(str).str.lower()
        if strip:
            result[column] = result[column].astype(str).str.strip()
    return result
def convert_types(df: pd.DataFrame, columns: Dict[str, str]) -> pd.DataFrame:
    """转换数据类型"""
    result = df.copy()
    for col, dtype in columns.items():
        if col in result.columns:
            try:
                result[col] = result[col].astype(dtype)
            except Exception as e:
                print(f"转换 {col} 失败: {e}")
    return result
# 使用示例
cleaner = DataCleaner()
# 添加清洗步骤
cleaner.add_step("去除重复", remove_duplicates, {"subset": ["user_id"]})
cleaner.add_step("填充缺失", fill_missing, {"columns": {"age": 0, "name": "未知"}})
cleaner.add_step("去除异常值", remove_outliers, {"column": "age", "method": "iqr"})
cleaner.add_step("标准化文本", standardize_text, {"column": "email", "lowercase": True})
cleaner.add_step("类型转换", convert_types, {"columns": {"age": "int64", "created_at": "datetime64"}})
# 执行清洗
cleaned_df, report = cleaner.clean(df)
print(f"清洗报告: {report}")

4. 数据分析引擎

4.1 统计分析器

数据干净了，就可以进入分析环节。统计分析器 StatisticalAnalyzer 封装了常见的统计方法：描述性统计（均值、中位数、偏度、峰度等）、相关性分析（支持 Pearson、Spearman）、假设检验（t 检验、Mann-Whitney U、卡方检验）、方差分析（ANOVA），以及时间序列分析（重采样、去趋势）。这些方法直接基于 pandas 和 SciPy，用起来非常顺手。

from typing import Dict, List, Optional
from scipy import stats
import numpy as np
class StatisticalAnalyzer:
    """统计分析器"""
    def __init__(self, df: pd.DataFrame):
        self.df = df
    def descriptive_stats(self, columns: List[str] = None) -> Dict:
        """描述性统计"""
        if columns is None:
            columns = self.df.select_dtypes(include=[np.number]).columns.tolist()
        result = {}
        for col in columns:
            if col not in self.df.columns:
                continue
            data = self.df[col].dropna()
            result[col] = {
                "count": len(data),
                "mean": data.mean(),
                "std": data.std(),
                "min": data.min(),
                "q1": data.quantile(0.25),
                "median": data.median(),
                "q3": data.quantile(0.75),
                "max": data.max(),
                "skewness": data.skew(),
                "kurtosis": data.kurtosis()
            }
        return result
    def correlation_analysis(self, method: str = "pearson") -> pd.DataFrame:
        """相关性分析"""
        numeric_df = self.df.select_dtypes(include=[np.number])
        return numeric_df.corr(method=method)
    def hypothesis_test(self, column1: str, column2: str, test_type: str = "ttest") -> Dict:
        """假设检验"""
        data1 = self.df[column1].dropna()
        data2 = self.df[column2].dropna()
        if test_type == "ttest":
            statistic, pvalue = stats.ttest_ind(data1, data2)
            return {
                "test": "t-test",
                "statistic": statistic,
                "p_value": pvalue,
                "significant": pvalue < 0.05
            }
        elif test_type == "mannwhitney":
            statistic, pvalue = stats.mannwhitneyu(data1, data2)
            return {
                "test": "Mann-Whitney U",
                "statistic": statistic,
                "p_value": pvalue,
                "significant": pvalue < 0.05
            }
        elif test_type == "chi2":
            contingency = pd.crosstab(self.df[column1], self.df[column2])
            statistic, pvalue, dof, expected = stats.chi2_contingency(contingency)
            return {
                "test": "Chi-square",
                "statistic": statistic,
                "p_value": pvalue,
                "dof": dof,
                "significant": pvalue < 0.05
            }
        return {}
    def anova(self, group_column: str, value_column: str) -> Dict:
        """方差分析"""
        groups = self.df.groupby(group_column)[value_column]
        group_data = [group.dropna().values for name, group in groups]
        statistic, pvalue = stats.f_oneway(*group_data)
        return {
            "test": "ANOVA",
            "statistic": statistic,
            "p_value": pvalue,
            "significant": pvalue < 0.05,
            "groups": len(group_data)
        }
    def time_series_analysis(self, date_column: str, value_column: str, freq: str = "D") -> Dict:
        """时间序列分析"""
        df = self.df.copy()
        df[date_column] = pd.to_datetime(df[date_column])
        df = df.set_index(date_column)
        # 重采样
        resampled = df[value_column].resample(freq)
        result = {
            "daily_stats": {
                "mean": resampled.mean().to_dict(),
                "sum": resampled.sum().to_dict(),
                "count": resampled.count().to_dict()
            }
        }
        # 趋势分析
        from scipy.signal import detrend
        values = df[value_column].values
        trend = detrend(values)
        result["detrended"] = trend.tolist()
        return result
# 使用示例
analyzer = StatisticalAnalyzer(sales_df)
# 描述性统计
stats_result = analyzer.descriptive_stats(["price", "quantity", "total"])
print(f"统计结果: {stats_result}")
# 相关性分析
corr = analyzer.correlation_analysis()
print(f"相关性矩阵:n{corr}")
# 假设检验
test_result = analyzer.hypothesis_test("group_a", "group_b", "ttest")
print(f"检验结果: {test_result}")

4.2 自然语言查询

并不是所有人都能写 SQL。自然语言查询模块 NaturalLanguageQuery 的作用，就是把“价格的平均值”这种口语化问题，自动转换成 SELECT A VG(price) FROM sales 这样的 SQL。它通过预定义的模板匹配问题中的关键词，然后结合数据字典（schema）找到对应的表和字段，最后生成可执行的 SQL。当然，复杂问题目前还支持有限，但覆盖日常的聚合、分组、排序已经够用。

from typing import Dict, List, Optional
import re
class NaturalLanguageQuery:
    """自然语言查询处理器"""
    def __init__(self, schema: Dict):
        self.schema = schema
        self.query_templates = self._build_templates()
    def _build_templates(self) -> List[Dict]:
        """构建查询模板"""
        return [
            {
                "pattern": r"(.+)的平均值",
                "sql_template": "SELECT A VG({column}) FROM {table}",
                "type": "aggregation"
            },
            {
                "pattern": r"(.+)的总和",
                "sql_template": "SELECT SUM({column}) FROM {table}",
                "type": "aggregation"
            },
            {
                "pattern": r"(.+)的最大值",
                "sql_template": "SELECT MAX({column}) FROM {table}",
                "type": "aggregation"
            },
            {
                "pattern": r"(.+)的最小值",
                "sql_template": "SELECT MIN({column}) FROM {table}",
                "type": "aggregation"
            },
            {
                "pattern": r"按(.+)分组统计(.+)",
                "sql_template": "SELECT {group_column}, COUNT(*) FROM {table} GROUP BY {group_column}",
                "type": "grouping"
            },
            {
                "pattern": r"(.+)前(d+)名",
                "sql_template": "SELECT * FROM {table} ORDER BY {column} DESC LIMIT {limit}",
                "type": "ranking"
            }
        ]
    def parse(self, question: str) -> Dict:
        """解析自然语言问题"""
        result = {
            "question": question,
            "sql": None,
            "type": None,
            "confidence": 0
        }
        for template in self.query_templates:
            match = re.search(template["pattern"], question)
            if match:
                result["type"] = template["type"]
                # 提取参数
                if template["type"] == "aggregation":
                    column_name = match.group(1)
                    column = self._find_column(column_name)
                    table = self._find_table(column)
                    if column and table:
                        result["sql"] = template["sql_template"].format(
                            column=column,
                            table=table
                        )
                        result["confidence"] = 0.8
                elif template["type"] == "grouping":
                    group_col_name = match.group(1)
                    value_col_name = match.group(2)
                    group_column = self._find_column(group_col_name)
                    table = self._find_table(group_column)
                    if group_column and table:
                        result["sql"] = template["sql_template"].format(
                            group_column=group_column,
                            table=table
                        )
                        result["confidence"] = 0.7
                elif template["type"] == "ranking":
                    column_name = match.group(1)
                    limit = match.group(2)
                    column = self._find_column(column_name)
                    table = self._find_table(column)
                    if column and table:
                        result["sql"] = template["sql_template"].format(
                            column=column,
                            table=table,
                            limit=limit
                        )
                        result["confidence"] = 0.8
                break
        return result
    def _find_column(self, name: str) -> Optional[str]:
        """查找匹配的列名"""
        name_lower = name.lower()
        for table_name, table_info in self.schema.items():
            for column in table_info.get("columns", []):
                if name_lower in column["name"].lower():
                    return column["name"]
        return None
    def _find_table(self, column: str) -> Optional[str]:
        """查找列所在的表"""
        for table_name, table_info in self.schema.items():
            for col in table_info.get("columns", []):
                if col["name"] == column:
                    return table_name
        return None
    def execute(self, question: str, connector: DataConnector) -> pd.DataFrame:
        """执行自然语言查询"""
        parsed = self.parse(question)
        if parsed["sql"]:
            return connector.fetch(parsed["sql"])
        return pd.DataFrame()
# 使用示例
schema = {
    "sales": {
        "columns": [
            {"name": "product", "type": "string"},
            {"name": "price", "type": "float"},
            {"name": "quantity", "type": "int"},
            {"name": "region", "type": "string"}
        ]
    }
}
nlq = NaturalLanguageQuery(schema)
# 解析问题
result = nlq.parse("价格的平均值")
print(f"SQL: {result['sql']}")
print(f"置信度: {result['confidence']}")
# 执行查询
# df = nlq.execute("销售额前10名", db_connector)

5. 可视化引擎

5.1 图表生成器

分析结果不能光看数字，图表才是直观的展示方式。图表生成器 ChartGenerator 封装了 matplotlib 和 seaborn，提供柱状图、折线图、饼图、散点图、热力图、直方图、箱线图等多种类型。每生成一个图表，它会自动保存到内部列表，最后可以一键批量导出。参数里可以指定 style、颜色、标签等，但核心逻辑都帮你简化了。

from typing import Dict, List, Optional
import matplotlib.pyplot as plt
import seaborn as sns
class ChartGenerator:
    """图表生成器"""
    def __init__(self, style: str = "seaborn"):
        plt.style.use(style)
        self.figures: List[plt.Figure] = []
    def bar_chart(self, df: pd.DataFrame, x: str, y: str, title: str = None) -> plt.Figure:
        """柱状图"""
        fig, ax = plt.subplots(figsize=(10, 6))
        df.plot.bar(x=x, y=y, ax=ax)
        if title:
            ax.set_title(title)
        ax.set_xlabel(x)
        ax.set_ylabel(y)
        plt.tight_layout()
        self.figures.append(fig)
        return fig
    def line_chart(self, df: pd.DataFrame, x: str, y: str, title: str = None) -> plt.Figure:
        """折线图"""
        fig, ax = plt.subplots(figsize=(12, 6))
        df.plot.line(x=x, y=y, ax=ax)
        if title:
            ax.set_title(title)
        plt.tight_layout()
        self.figures.append(fig)
        return fig
    def pie_chart(self, df: pd.DataFrame, values: str, labels: str, title: str = None) -> plt.Figure:
        """饼图"""
        fig, ax = plt.subplots(figsize=(8, 8))
        ax.pie(df[values], labels=df[labels], autopct='%1.1f%%')
        if title:
            ax.set_title(title)
        self.figures.append(fig)
        return fig
    def scatter_plot(self, df: pd.DataFrame, x: str, y: str, hue: str = None, title: str = None) -> plt.Figure:
        """散点图"""
        fig, ax = plt.subplots(figsize=(10, 8))
        if hue:
            for category in df[hue].unique():
                subset = df[df[hue] == category]
                ax.scatter(subset[x], subset[y], label=category, alpha=0.6)
            ax.legend()
        else:
            ax.scatter(df[x], df[y], alpha=0.6)
        ax.set_xlabel(x)
        ax.set_ylabel(y)
        if title:
            ax.set_title(title)
        plt.tight_layout()
        self.figures.append(fig)
        return fig
    def heatmap(self, df: pd.DataFrame, title: str = None) -> plt.Figure:
        """热力图"""
        fig, ax = plt.subplots(figsize=(10, 8))
        sns.heatmap(df, annot=True, fmt=".2f", cmap="coolwarm", ax=ax)
        if title:
            ax.set_title(title)
        plt.tight_layout()
        self.figures.append(fig)
        return fig
    def histogram(self, df: pd.DataFrame, column: str, bins: int = 30, title: str = None) -> plt.Figure:
        """直方图"""
        fig, ax = plt.subplots(figsize=(10, 6))
        ax.hist(df[column], bins=bins, edgecolor='black')
        ax.set_xlabel(column)
        ax.set_ylabel('Frequency')
        if title:
            ax.set_title(title)
        plt.tight_layout()
        self.figures.append(fig)
        return fig
    def box_plot(self, df: pd.DataFrame, x: str, y: str, title: str = None) -> plt.Figure:
        """箱线图"""
        fig, ax = plt.subplots(figsize=(10, 6))
        df.boxplot(column=y, by=x, ax=ax)
        if title:
            ax.set_title(title)
        plt.tight_layout()
        self.figures.append(fig)
        return fig
    def sa ve_all(self, directory: str, prefix: str = "chart"):
        """保存所有图表"""
        import os
        os.makedirs(directory, exist_ok=True)
        for i, fig in enumerate(self.figures):
            path = os.path.join(directory, f"{prefix}_{i+1}.png")
            fig.sa vefig(path, dpi=150)
            print(f"保存图表: {path}")
    def close_all(self):
        """关闭所有图表"""
        for fig in self.figures:
            plt.close(fig)
        self.figures.clear()
# 使用示例
chart_gen = ChartGenerator()
# 生成图表
chart_gen.bar_chart(sales_df, x="product", y="sales", title="产品销售额")
chart_gen.line_chart(time_df, x="date", y="revenue", title="收入趋势")
chart_gen.pie_chart(category_df, values="amount", labels="category", title="类别占比")
chart_gen.scatter_plot(sales_df, x="price", y="quantity", hue="region", title="价格与销量关系")
# 保存图表
chart_gen.sa ve_all("/output/charts", "analysis")

6. 最佳实践

6.1 平台设计原则

构建这样的平台，有几个原则值得注意：

6.2 常见问题

实际开发中可能会遇到这些问题，提前知道就好办了：

7. 总结

7.1 核心要点

回过头来梳理一下，这篇文章通过一个完整的数据分析平台案例，展示了 OpenClaw 在数据采集、清洗、分析、查询和可视化各个环节的实际用法。核心模块和技术要点如下：

如果你正在搭建类似系统，希望这些代码和设计能给你一个实际的参考起点。毕竟，从零到一往往是最难的，有了模版，剩下的就是按需调整和扩展了。
