OpenAPI 接口规范

OpenAPI 到底是什么？简单来说，就是描述 HTTP API 的一套标准方式。今天就来梳理一下 OpenAPI 规范里那些绕不开的核心要点。

OpenAPI 版本号规范

版本号遵循 major.minor.patch 的格式，例如 3.1.2。比较简单，这里不多展开：

• major：定义大版本迭代
• minor：定义小功能变更
• patch：定义小版本内的修补

OpenAPI 格式规范

支持 JSON 或 YAML 两种格式，字段区分大小写。下面分别给出示例，便于对照。

JSON 示例

{"title": "Sample Pet Store App","summary": "A pet store manager.","description": "This is a sample server for a pet store.","termsOfService": "https://example.com/terms/","contact": {"name": "API Support","url": "https://www.example.com/support","email": "support@example.com"},"license": {"name": "Apache 2.0","url": "https://www.apache.org/licenses/LICENSE-2.0.html"},"version": "1.0.1"}

YAML 示例

title: Sample Pet Store Appsummary: A pet store manager.description: This is a sample server for a pet store.termsOfService: https://example.com/terms/contact:name: API Supporturl: https://www.example.com/supportemail: support@example.comlicense:name: Apache 2.0url: https://www.apache.org/licenses/LICENSE-2.0.htmlversion: 1.0.1

OpenAPI 文档结构规范

文档可以是单个文件，也可以拆分成多个文件——具体看团队习惯。如果拆分了，需要在 Reference Objects 和 Schema Object 中通过 $ref 关键字进行引用。命名方面，建议统一叫 openapi.json 或 openapi.yaml，简单明了。

OpenAPI 数据类型规范

数据类型必须符合 JSON Schema Specification Draft 2020-12 的规范。下面是一份常用的类型对照表：

JSON Schema 规范地址：https://datatracker.ietf.org/doc/html/draft-bhutton-json-schema-00#section-4.2.1

OpenAPI 富文本格式规范

description 字段支持 CommonMark markdown 格式，所以在富文本使用时，请务必按照 CommonMark 标准来写。

OpenAPI 对象

这部分是最核心的内容，逐个拆解 OpenAPI 文档中的关键对象。

Info Object

描述 API 的元数据。

{"title": "Sample Pet Store App","summary": "A pet store manager.","description": "This is a sample server for a pet store.","termsOfService": "https://example.com/terms/","contact": {"name": "API Support","url": "https://www.example.com/support","email": "support@example.com"},"license": {"name": "Apache 2.0","url": "https://www.apache.org/licenses/LICENSE-2.0.html"},"version": "1.0.1"}

Contact Object

API 的联系方式。

{"name": "API Support","url": "https://www.example.com/support","email": "support@example.com"}

Server Object

定义 API 的服务地址。可以只配一个：

{"url": "https://development.gigantic-server.com/v1","description": "Development server"}

也可以配多个环境：

{"servers": [{"url": "https://development.gigantic-server.com/v1","description": "Development server"},{"url": "https://staging.gigantic-server.com/v1","description": "Staging server"},{"url": "https://api.gigantic-server.com/v1","description": "Production server"}]}

Components Object

定义可复用的组件，比如公共的 Schema、参数、响应、安全方案等。

"components": {"schemas": {"GeneralError": {"type": "object","properties": {"code": {"type": "integer","format": "int32"},"message": {"type": "string"}}},"Category": {"type": "object","properties": {"id": {"type": "integer","format": "int64"},"name": {"type": "string"}}},"Tag": {"type": "object","properties": {"id": {"type": "integer","format": "int64"},"name": {"type": "string"}}}},"parameters": {"skipParam": {"name": "skip","in": "query","description": "number of items to skip","required": true,"schema": {"type": "integer","format": "int32"}},"limitParam": {"name": "limit","in": "query","description": "max records to return","required": true,"schema" : {"type": "integer","format": "int32"}}},"responses": {"NotFound": {"description": "Entity not found."},"IllegalInput": {"description": "Illegal input for operation."},"GeneralError": {"description": "General Error","content": {"application/json": {"schema": {"$ref": "#/components/schemas/GeneralError"}}}}},"securitySchemes": {"api_key": {"type": "apiKey","name": "api_key","in": "header"},"petstore_auth": {"type": "oauth2","flows": {"implicit": {"authorizationUrl": "https://example.org/api/oauth/dialog","scopes": {"write:pets": "modify pets in your account","read:pets": "read your pets"}}}}}}

Paths Object

定义所有 API 的 URL 路径及对应操作。

{"/pets": {"get": {"description": "Returns all pets from the system that the user has access to","responses": {"200": {"description": "A list of pets.","content": {"application/json": {"schema": {"type": "array","items": {"$ref": "#/components/schemas/pet"}}}}}}}}}

Path Item Object

单个路径上可用操作的详细定义。

{"get": {"description": "Returns pets based on ID","summary": "Find pets by ID","operationId": "getPetsById","responses": {"200": {"description": "pet response","content": {"*/*": {"schema": {"type": "array","items": {"$ref": "#/components/schemas/Pet"}}}}},"default": {"description": "error payload","content": {"text/html": {"schema": {"$ref": "#/components/schemas/ErrorModel"}}}}}},"parameters": [{"name": "id","in": "path","description": "ID of pet to use","required": true,"schema": {"type": "array","items": {"type": "string"}},"style": "simple"}]}

Operation Object

定义路径上单个 API 操作（如 GET、POST 等）。

{"tags": ["pet"],"summary": "Updates a pet in the store with form data","operationId": "updatePetWithForm","parameters": [{"name": "petId","in": "path","description": "ID of pet that needs to be updated","required": true,"schema": {"type": "string"}}],"requestBody": {"content": {"application/x-www-form-urlencoded": {"schema": {"type": "object","properties": {"name": { "description": "Updated name of the pet","type": "string"},"status": {"description": "Updated status of the pet","type": "string"}},"required": ["status"] }}}},"responses": {"200": {"description": "Pet updated.","content": {"application/json": {},"application/xml": {}}},"405": {"description": "Method Not Allowed","content": {"application/json": {},"application/xml": {}}}},"security": [{"petstore_auth": ["write:pets","read:pets"]}]}

External Documentation Object

提供扩展的文档资源。

{"description": "Find more info here","url": "https://example.com"}

Parameter Object

定义接口参数。

{"name": "token","in": "header","description": "token to be passed as a header","required": true,"schema": {"type": "array","items": {"type": "integer","format": "int64"}},"style": "simple"}

Request Body Object

请求体定义。

{"description": "user to add to the system","content": {"application/json": {"schema": {"$ref": "#/components/schemas/User"},"examples": {"user" : {"summary": "User Example", "externalValue": "https://foo.bar/examples/user-example.json"} }},"application/xml": {"schema": {"$ref": "#/components/schemas/User"},"examples": {"user" : {"summary": "User example in XML","externalValue": "https://foo.bar/examples/user-example.xml"}}},"text/plain": {"examples": {"user" : {"summary": "User example in Plain text","externalValue": "https://foo.bar/examples/user-example.txt" }} },"*/*": {"examples": {"user" : {"summary": "User example in other format","externalValue": "https://foo.bar/examples/user-example.whatever"}}}}}

Responses Object

定义 API 返回响应。

{"200": {"description": "a pet to be returned","content": {"application/json": {"schema": {"$ref": "#/components/schemas/Pet"}}}},"default": {"description": "Unexpected error","content": {"application/json": {"schema": {"$ref": "#/components/schemas/ErrorModel"}}}}}

Header Object

定义自定义请求头。

{"description": "The number of allowed requests in the current period","schema": {"type": "integer"}}

使用 Apifox 管理 OpenAPI API

搞清楚规范之后，落地管理就成了下一个关键问题。Apifox 是一款集 API 文档、测试、Mock 于一体的协作工具，用来管理 OpenAPI 项目再合适不过。

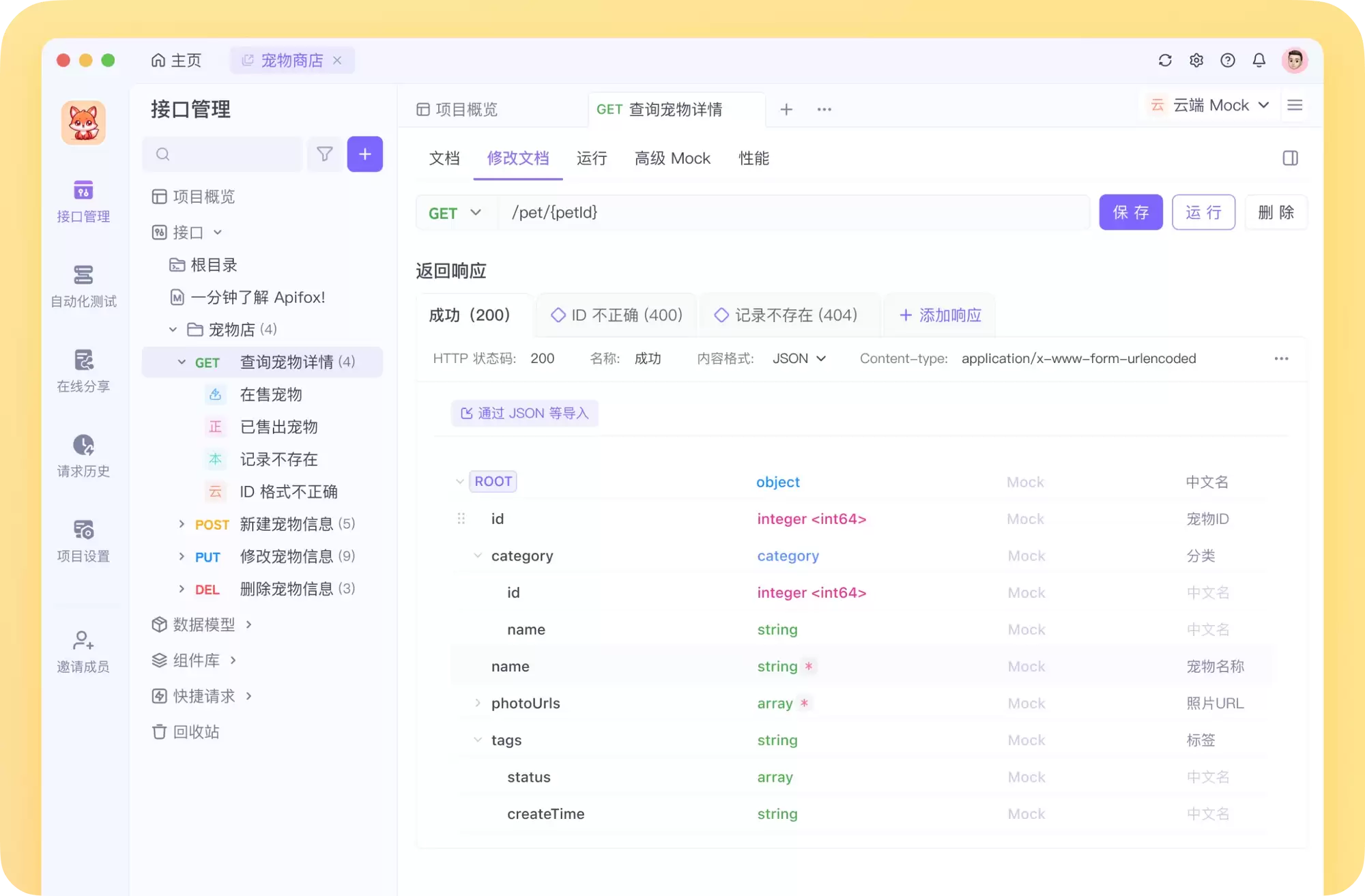

Apifox 的 API 管理

功能覆盖得很全，包括接口数管理、operationID、Mock、请求定义与示例、响应定义与示例，以及唯一标识等。

• 接口数管理
• operationID
• Mock 功能
• 请求定义、请求示例
• 响应定义、响应示例
• 唯一标识

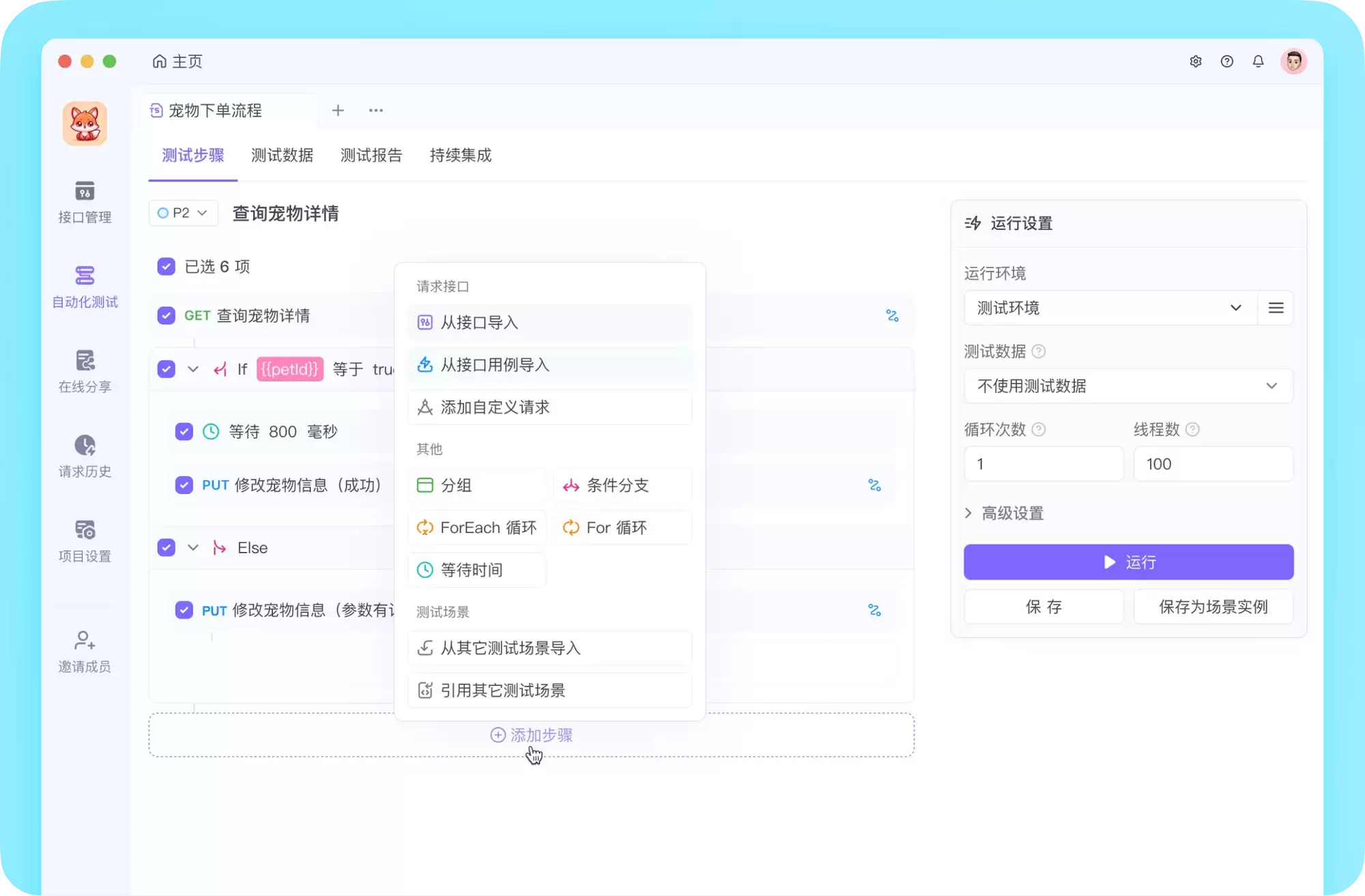

Apifox 的自动化测试

自动化测试同样能打，支持：

• 测试用例：可测多个接口或接口用例
• 测试套件：可组合多个测试用例
• 支持设置循环数、延迟、环境、线程数等参数
• 支持导出测试报告
• 支持查看单个接口的测试结果及详细参数

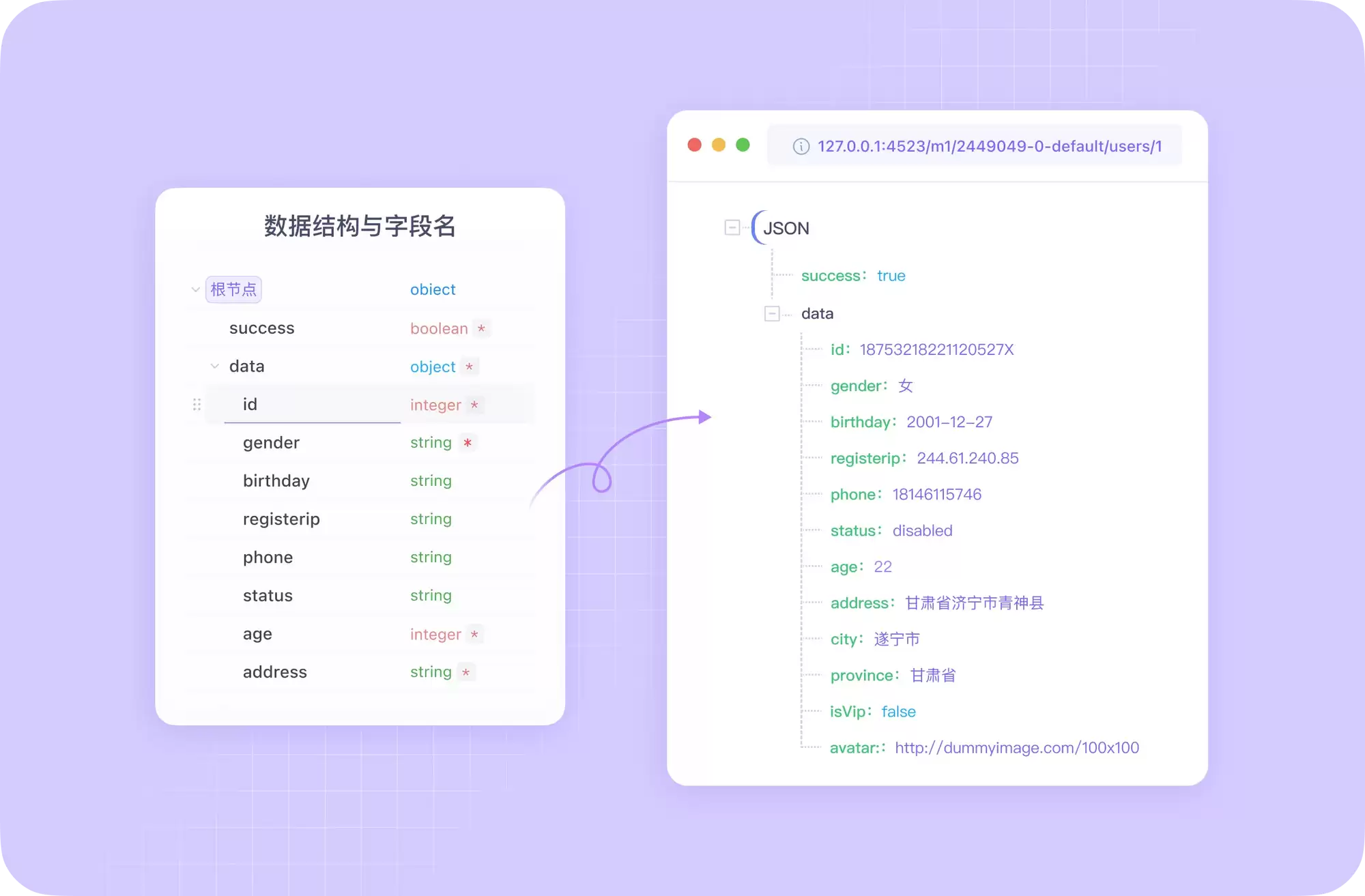

Mock 功能

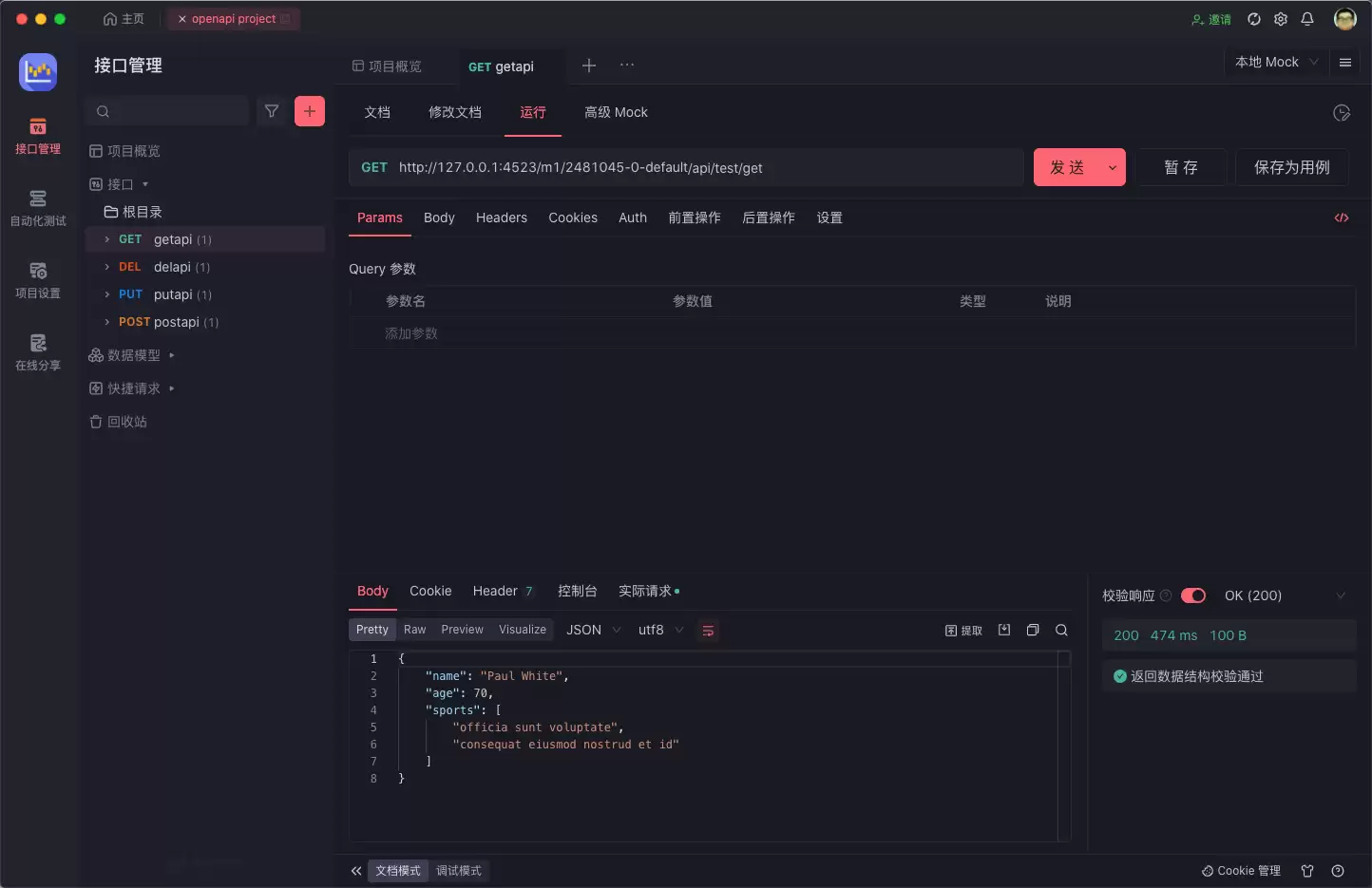

定义完接口响应之后，直接通过本地 Mock 就能得到模拟数据。

点击发送即可获取 Mock 数据：

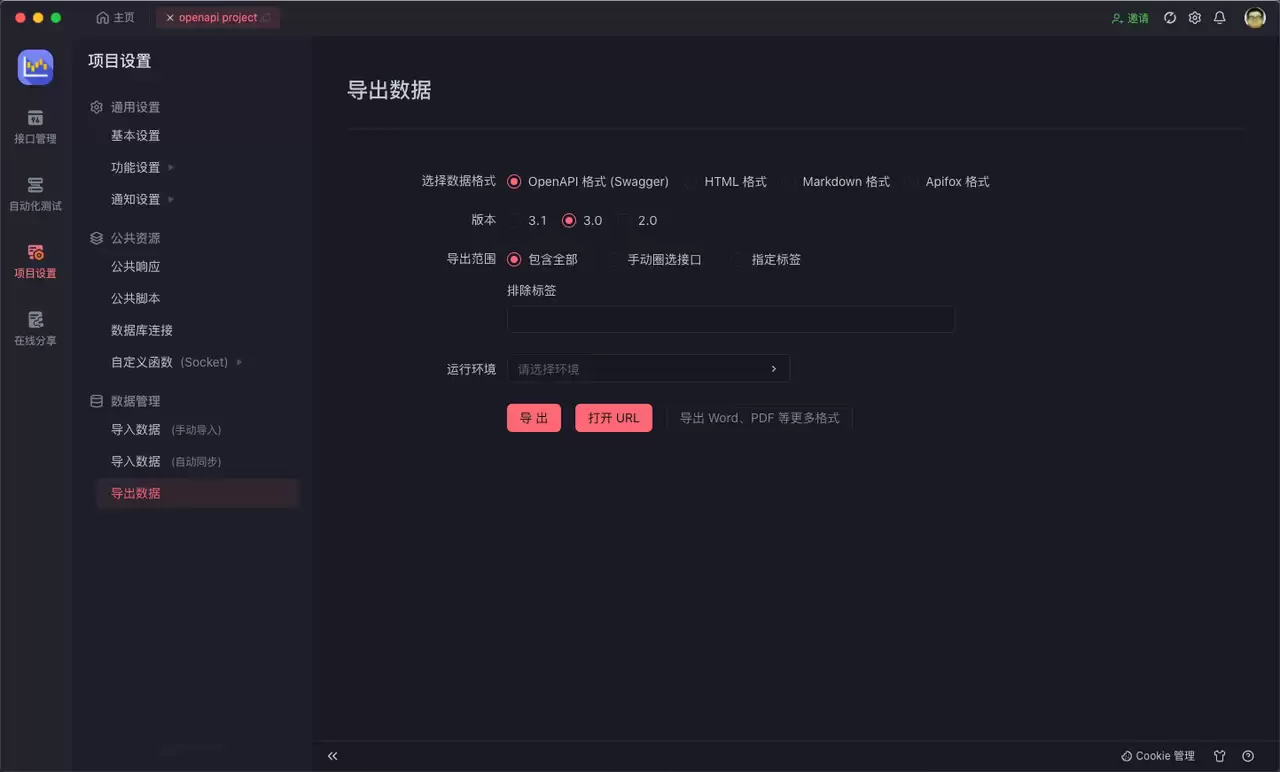

导出导入 OpenAPI

要是做 API 项目迁移，导入导出功能能让迁移成本降到最低。

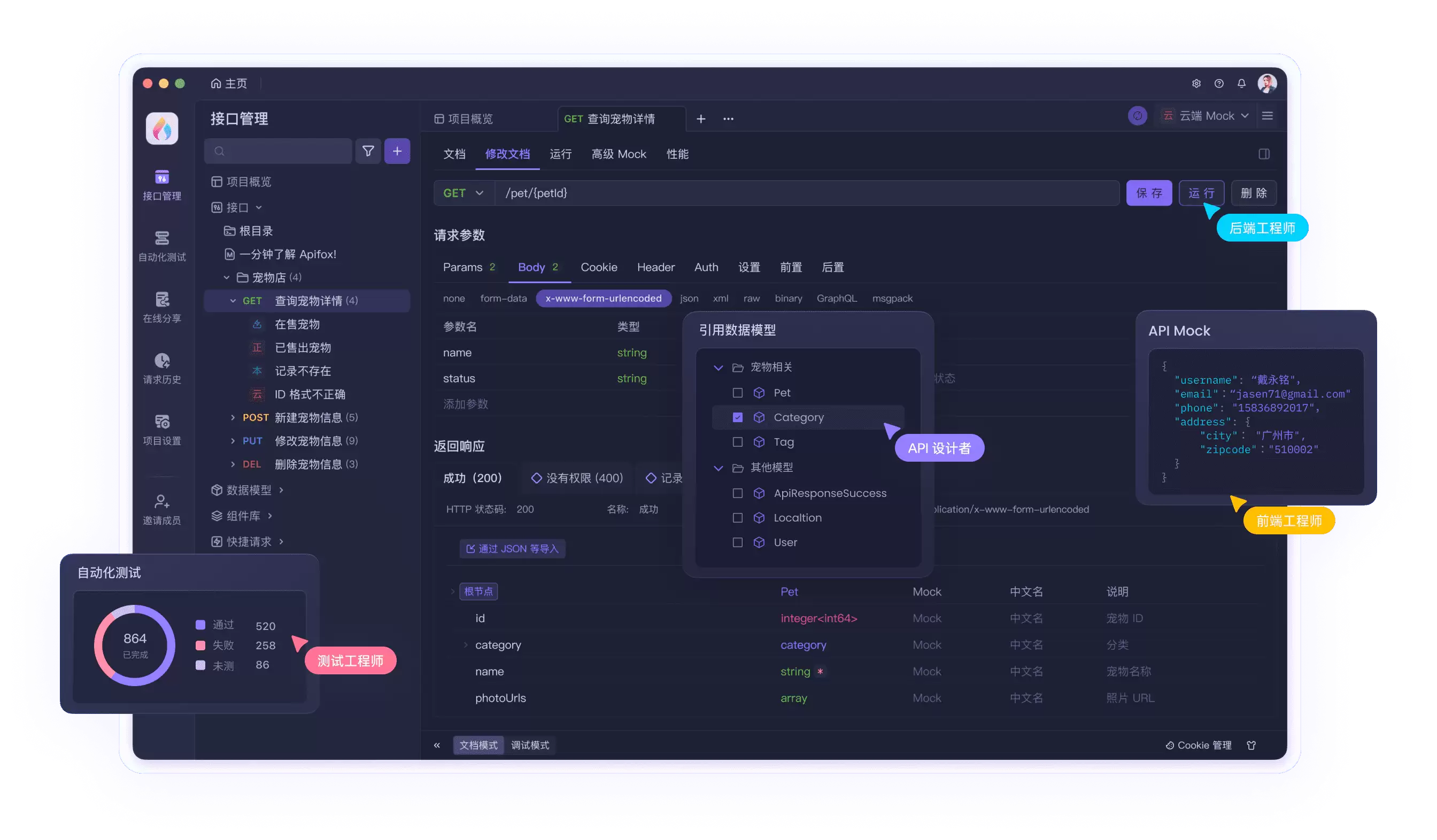

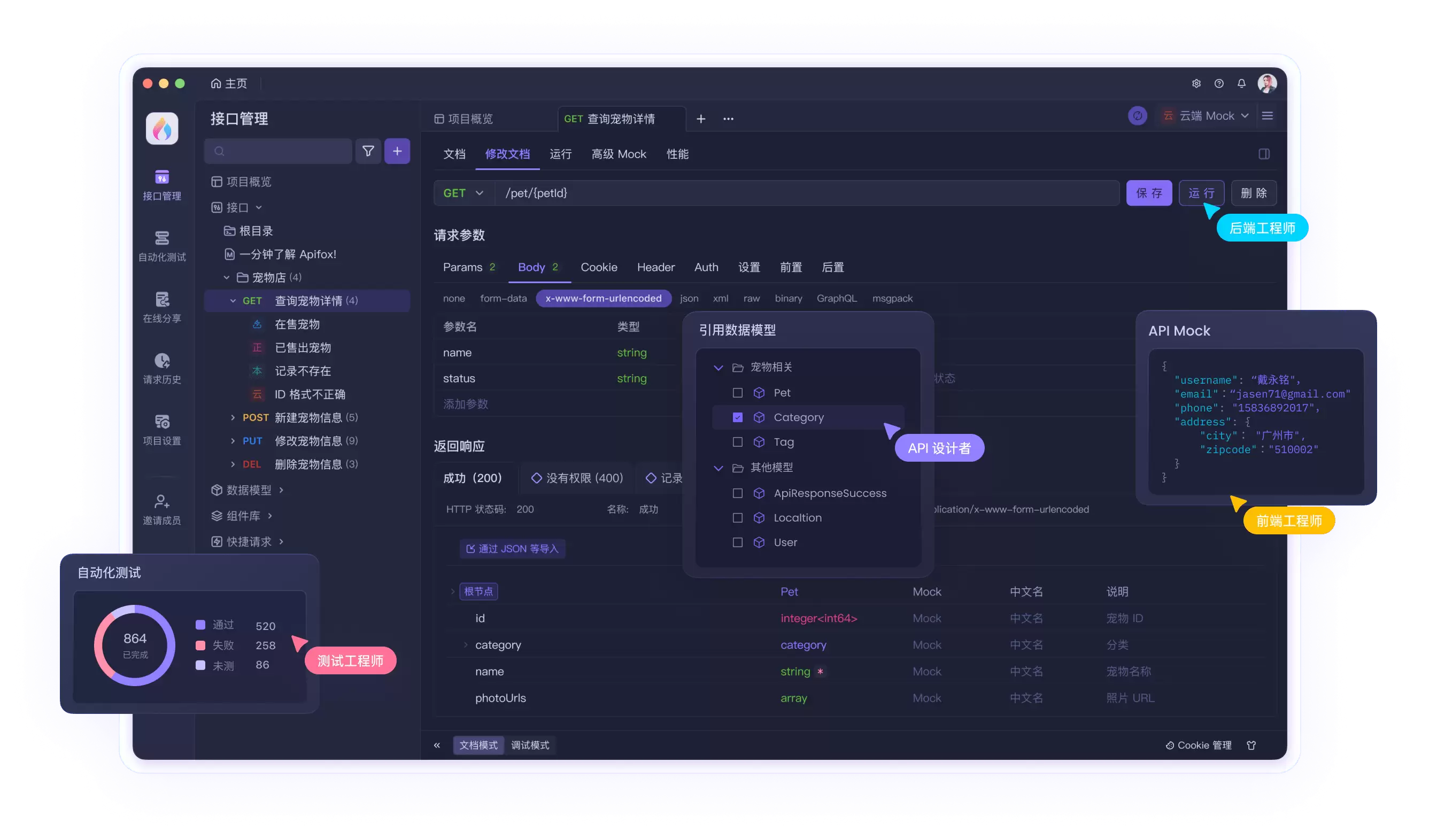

关于 Apifox

• 集成了 API 文档、调试、Mock、自动化测试的一体化协作平台
• 具备更先进的 API 设计/开发/测试能力
• 可以理解为：Apifox = Postman + Swagger + Mock + JMeter

完全免费，值得试试：在线使用 Apifox
