深入探究 ClickHouse 的 MCP（Model Context Protocol）实现，从零开始搭建到开源分享，带你系统掌握 ClickHouse 的数据处理与分析能力。
核心内容：
- ClickHouse MCP 的实现背景与开发动机
- 构建 ClickHouse MCP 的完整步骤与代码详细解析
- 写入 ClickHouse 的模拟数据生成与表结构设计
背景
近期看到一篇关于 GreptimeDB 集成 MCP 的文章，其演示效果非常酷。受此启发，我尝试使用 ClickHouse 也实现一套类似的 MCP 服务器，前后大约花了几个小时。目前项目已在 GitHub 开源（dubin555/clickhouse_mcp_server）。尽管 GitHub 上已有两三个现成的实现，但当前版本在代码注释完整度和文档详尽程度上，应该算是做得比较充分的。
效果
写数据
首先向 ClickHouse 写入一些模拟数据，这里准备了一组销售数据（可随意替换为其他数据，利用豆包、元宝等工具生成假数据非常便捷）。
-- Create sales analysis table with comments
CREATE TABLE IF NOT EXISTS default.city_sales
(
city String COMMENT 'Name of the city where the sale occurred',
product_category Enum('Electronics' = 1, 'Apparel' = 2, 'Grocery' = 3) COMMENT 'Category of the product sold',
sale_date Date COMMENT 'Date of the sales transaction',
units_sold UInt32 COMMENT 'Number of units sold in the transaction',
unit_price Float32 COMMENT 'Price per unit in USD',
total_sales Float32 MATERIALIZED units_sold * unit_price COMMENT 'Calculated total sales amount'
) ENGINE = MergeTree()
PARTITION BY toYYYYMM(sale_date)
ORDER BY (city, product_category, sale_date)
COMMENT 'Table storing city-wise product sales data for business analysis';
-- Generate 10,000 random sales records
INSERT INTO default.city_sales (city, product_category, sale_date, units_sold, unit_price)
SELECT
['New York', 'London', 'Tokyo', 'Paris', 'Singapore', 'Dubai'][rand() % 6 + 1] AS city,
toInt16(rand() % 3 + 1) AS product_category,
today() - rand() % 365 AS sale_date,
rand() % 100 + 1 AS units_sold, -- Units between 1-100
randNormal(50, 15) AS unit_price -- Normal distribution around $50
FROM numbers(10000);
表中的字段涵盖城市、销售品类、产品、销售额等多个维度，便于进行多角度分析。
提问
接下来通过自然语言进行查询（此处使用的客户端是 VSCode 的 Cline 插件）：
- 各城市的销售额分别是多少？
- 哪种商品最畅销？

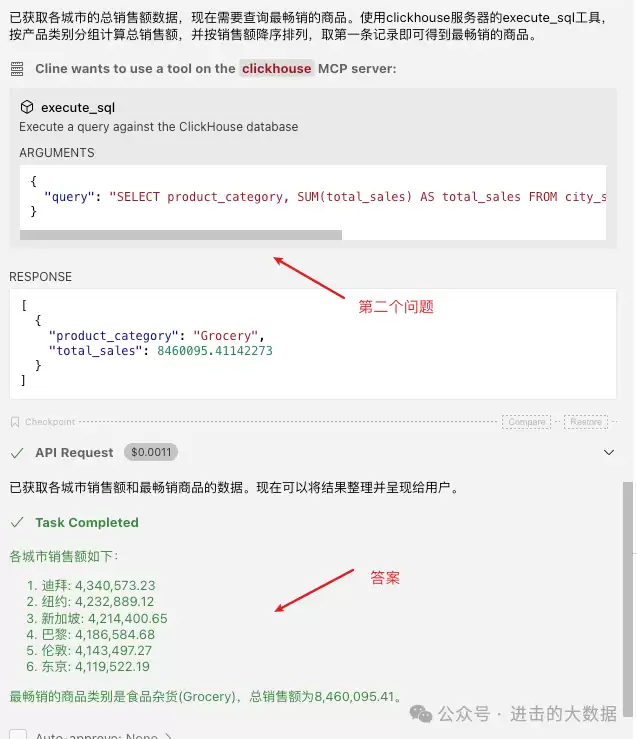

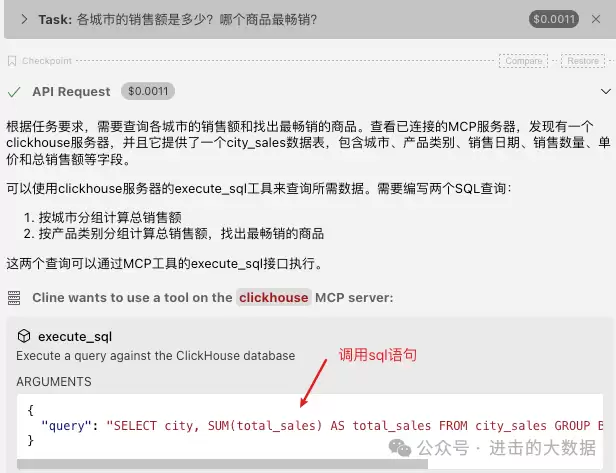

LLM 的第一次调用：
实现
在 GitHub 上参考了两三个已有的实现，整体逻辑并不复杂。完整的代码可前往仓库查看，这里重点讲解最关键的一个文件——server.py。
整体
其中包含 5 个主要类：
- ClickHouseClient：负责创建 ClickHouse 连接并执行查询操作。
- TableMetadataManager：负责查询表结构的元数据，例如字段列表、注释等信息。
- ResourceManager：负责构造供 LLM 使用的资源提示，展示有哪些可访问的资源，内部会调用 TableMetadataManager。
- ToolManager：负责告知 LLM 有哪些可用的工具（Tool），并执行这些工具的调用，内部会调用 ClickHouseClient。
- DatabaseServer：整合上面 4 个类的功能，完成最终的 MCP 服务器。
具体实现
ClickHouseClient
class ClickHouseClient:
"""ClickHouse database client"""
def __init__(self, config: Config, logger: Logger):
self.logger = logger
self.db_config = {
"host": config.host,
"port": int(config.port),
"user": config.user,
"password": config.password,
"database": config.database
}
self._client = None
def get_client(self):
"""Get ClickHouse client, singleton pattern"""
if self._client is None:
self._client = self._create_client()
return self._client
def _create_client(self):
"""Create a new ClickHouse client"""
try:
self.logger.debug(f"Creating ClickHouse client with config: {self.db_config}")
client = clickhouse_connect.get_client(**self.db_config)
version = client.server_version
self.logger.info("ClickHouse client created successfully")
return client
except Exception as e:
self.logger.error(f"Failed to create ClickHouse client: {e}")
raise
def execute_query(self, query: str, readonly: bool = True):
"""Execute a query against the ClickHouse database"""
try:
client = self.get_client()
settings = {"readonly": 1} if readonly else {}
res = client.query(query, settings=settings)
# convert result to list of dicts
rows = []
for row in res.result_rows:
row_dict = {}
for i, col_name in enumerate(res.column_names):
row_dict[col_name] = row[i]
rows.append(row_dict)
self.logger.debug(f"Query executed successfully: {query}")
return rows
except Exception as e:
self.logger.error(f"Failed to execute query: {e}")
raise
ClickHouseClient 类采用单例模式管理数据库连接，并支持设置只读模式执行查询，确保数据安全。
TableMetadataManager
class TableMetadataManager:
"""Manage table metadata in ClickHouse"""
def __init__(self, client: ClickHouseClient, logger: Logger):
self.client = client
self.logger = logger
def get_table_list(self, database: str) -> List[str]:
"""Get list of tables in the database"""
query = f"SHOW TABLES FROM {quote_identifier(database)}"
result = self.client.execute_query(query)
if not result:
return []
return [row[next(iter(row.keys()))] for row in result]
def get_table_comments(self, database: str) -> Dict[str, str]:
"""Get comments for the tables in the database"""
query = f"SELECT name, comment FROM system.tables WHERE database = {format_query_value(database)}"
result = self.client.execute_query(query)
return {row['name']: row['comment'] for row in result}
def get_column_comments(self, database: str) -> Dict[str, Dict[str, str]]:
"""Get comments for the columns in the tables in the database"""
query = f"SELECT table, name, comment FROM system.columns WHERE database = {format_query_value(database)}"
result = self.client.execute_query(query)
column_comments = {}
for row in result:
table, col_name, comment = row['table'], row['name'], row['comment']
if table not in column_comments:
column_comments[table] = {}
column_comments[table][col_name] = comment
return column_comments
def format_table_description(self, table_name: str, table_comment: str, columns_info: Dict[str, str]) -> str:
"""Format table description for the model"""
description = f"Table: {table_name}\n"
if table_comment:
description += f"Description: {table_comment}\n"
else:
description += "Description: No description provided\n"
if columns_info:
# Add column descriptions
description += "Columns:\n"
for col_name, col_comment in columns_info.items():
if col_comment:
description += f" - {col_name}: {col_comment}\n"
else:
description += f" - {col_name}: No description provided\n"
return description
TableMetadataManager 负责从系统表中提取表名、表注释及字段注释，并将这些元数据格式化为 LLM 易于理解的描述文本。
ResourceManager
class ResourceManager:
"""MCP resource manager"""
def __init__(self, client: ClickHouseClient, logger: Logger
, resource_prefix: str = DEFAULT_RESOURCE_PREFIX
, results_limit: int = DEFAULT_RESULTS_LIMIT):
self.client = client
self.logger = logger
self.metadata_manager = TableMetadataManager(client, logger)
self.resource_prefix = resource_prefix
self.results_limit = results_limit
async def list_resources(self) -> List[Resource]:
"""List all resources in the database"""
self.logger.debug("Listing resources")
database = self.client.db_config.get("database")
try:
# Get table list
table_list = self.metadata_manager.get_table_list(database)
if not table_list:
return []
# Get table comments and column comments
table_comments = self.metadata_manager.get_table_comments(database)
column_comments = self.metadata_manager.get_column_comments(database)
# Format table descriptions
resources = []
for table_name in table_list:
table_comment = table_comments.get(table_name, "")
columns_info = column_comments.get(table_name, {})
description = self.metadata_manager.format_table_description(table_name, table_comment, columns_info)
# Create resources
resource = Resource(
uri=f"{self.resource_prefix}/{table_name}/data",
name=f"Table: {table_name}",
mimeType="text/plain",
description=description,
type="table",
metadata = {
"columns": [
{
"name": col_name,
"description": col_comment
}
for col_name, col_comment in columns_info.items()
]
}
)
resources.append(resource)
self.logger.debug(f"Found {len(resources)} resources")
return resources
except Exception as e:
self.logger.error(f"Failed to list resources: {e}")
return []
async def read_resource(self, uri: AnyUrl) -> str:
"""Read resource data"""
self.logger.debug(f"Reading resource: {uri}")
uri_str = str(uri)
try:
# Parse URI
if not uri_str.startswith(self.resource_prefix):
self.logger.error(f"Invalid resource URI: {uri}")
return ""
# get talbe name
table_name = uri_str[len(self.resource_prefix):].split("/")[0]
# get query
query = f"SELECT * FROM {quote_identifier(table_name)} LIMIT {self.results_limit}"
result = self.client.execute_query(query)
# format result
if not result:
return "No data found"
return json.dumps(result, default=str , indent=2)
except Exception as e:
self.logger.error(f"Failed to read resource: {e}")
return f"Error reading resource: {str(e)}"
ResourceManager 将数据库中的每张表封装为一个 MCP 资源，并附带其结构描述，供 LLM 理解和访问。
ToolManager
class ToolManager:
"""MCP tool manager"""
def __init__(self, client: ClickHouseClient, logger: Logger):
self.client = client
self.logger = logger
async def list_tools(self) -> List[Tool]:
"""List all tools"""
self.logger.debug("Listing tools")
return [
Tool(
name="execute_sql",
description="Execute a query against the ClickHouse database",
inputSchema={
"type": "object",
"properties": {
"query": {
"type": "string",
"description": "The SQL query to be executed"
}
},
"required": ["query"],
}
)
]
async def call_tool(self, name: str, arguments: Dict[str, Any]) -> List[TextContent]:
"""Call a tool"""
self.logger.debug(f"Calling tool: {name} with arguments: {arguments}")
# Tool handler mapping
tool_handlers = {
"execute_sql": self._handle_execute_sql
}
# Get handler
handler = tool_handlers.get(name)
if not handler:
self.logger.error(f"Tool not found: {name}")
return []
# Call handler
return await handler(arguments)
async def _handle_execute_sql(self, arguments: Dict[str, str]) -> List[TextContent]:
"""Handle execute_sql tool"""
self.logger.debug("Handling execute_sql tool")
# Get query
query = arguments.get("query")
if not query:
self.logger.error("Query is required")
return []
# Check query
is_dangerous, pattern = dangerous_check(query)
if is_dangerous:
self.logger.error(f"Dangerous query detected: {pattern}")
return [TextContent(value=f"Error: Dangerous query detected: {pattern}")]
try:
# Execute query
result = self.client.execute_query(query)
json_result = json.dumps(result, default=str, indent=2)
return [
TextContent(
type='text',
text=json_result,
mimeType='application/json'
)
]
except Exception as e:
self.logger.error(f"Failed to execute query: {e}")
return [TextContent(type='text', text=f"Error executing query: {str(e)}")]
ToolManager 定义了一个 execute_sql 工具，支持 LLM 提交 SQL 查询并获取 JSON 格式的结果，同时通过危险检测机制保障数据库安全。
DatabaseServer
class DatabaseServer:
"""MCP database server"""
def __init__(self, config: Config, logger: Logger):
self.app = Server("clickhouse_mcp_server")
self.logger = logger
# create components
self.client = ClickHouseClient(config, logger)
self.resource_manager = ResourceManager(self.client, logger)
self.tool_manager = ToolManager(self.client, logger)
# register components
self.app.list_resources()(self.resource_manager.list_resources)
self.app.read_resource()(self.resource_manager.read_resource)
self.app.list_tools()(self.tool_manager.list_tools)
self.app.call_tool()(self.tool_manager.call_tool)
async def run(self):
"""Run the server"""
from mcp.server.stdio import stdio_server
self.logger.info("Starting server")
async with stdio_server() as (read_stream, write_stream):
try:
await self.app.run(
read_stream,
write_stream,
self.app.create_initialization_options()
)
except Exception as e:
self.logger.error(f"Server error: {e}")
raise
通过上述几个模块的组合，一套完整的 ClickHouse MCP 服务器就搭建完成了。实际使用时，只需在 VSCode 的 Cline 或类似的 MCP 客户端中配置好连接，即可直接使用自然语言进行查询和分析数据，体验远比手动编写 SQL 更加流畅高效。
